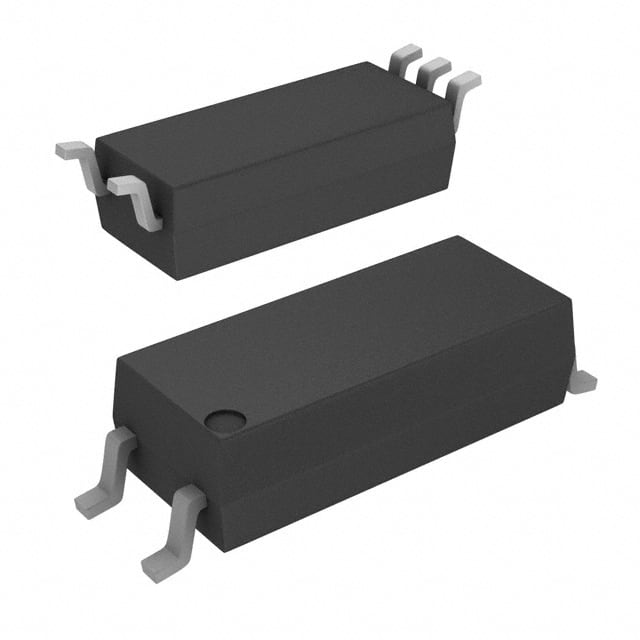

FOD8320R2V The ON Semiconductor FOD8320R2V is a 1-channel opto-isolator gate driver. It features a surface mountable 6-SOIC package and operates within a temperature range of -40°C to 100°C.
Mfr Part #:

FOD8320R2V

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The ON Semiconductor FOD8320R2V is a 1-channel opto-isolator gate driver. It features a surface mountable 6-SOIC package and operates within a temperature range of -40°C to 100°C.
✓ Total Stock: 4,000 pcs
$ Price Range: $2.55

FOD8320R2V Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FOD8320R2V Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Common Mode Transient Immunity (Min)
Current
Lead Style
Mounting Type
Number of Channels
Operating Temperature
Propagation Delay tpLH
Pulse Width Distortion (Max)
Rise
Supplier Device Package
Supplier Package
Technology
Voltage
View Similar Products (0)

FOD8320R2V Description

Short technical summary and product information.

The ON Semiconductor FOD8320R2V is a single-channel opto-isolator designed for gate driver applications. It operates with a voltage range of 16V to 30V and a current rating of 25 mA. The device offers a common mode transient immunity of 35kV/µs and a pulse width distortion of 100ns maximum.



This gate driver utilizes optical coupling technology and is suitable for surface mounting, housed in a 6-SOIC package with 5 leads. It operates within a temperature range of -40°C to 100°C. The FOD8320R2V is approved by IEC/EN/DIN and UL agencies, indicating its suitability for various industrial applications requiring reliable isolation.



Key electrical characteristics include a propagation delay of 400ns and a rise time of 60ns. The component is designed for robust performance in demanding environments, providing essential isolation for control circuits.

FOD8320R2V Quick Information

Product Type: Opto-Isolator Gate Driver
Canonical Name: On Semiconductor FOD8320R2V Opto-Isolator Gate Driver
Subcategory: Gate Drivers

FOD8320R2V Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FOD8320R2V Estimated Pricing

Qty Low High
1+ $2.55 $2.55

Estimated market price range - modelled values for guidance only, not live distributor offers.

FOD8320R2V Features

  • Single channel opto-isolator gate driver.
  • Operates from 16V to 30V.
  • Features 35kV/µs transient immunity.
  • Surface mount 6-SOIC package.
  • Wide -40°C to 100°C temperature range.

FOD8320R2V Applications

  • Used for signal isolation.
  • Suitable for gate drive circuits.
  • Industrial control applications.
  • Power supply control systems.

FOD8320R2V FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the FOD8320R2V?

The operating voltage range is 16V to 30V.

What package type does the FOD8320R2V come in?

It comes in a 5-SOP surface mount package.

What is the operating temperature range for the FOD8320R2V?

The operating temperature range is -40°C to 100°C.

Is the FOD8320R2V RoHS compliant?

Yes, it is RoHS3 compliant.
