| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,843 pcs
|
2843 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Common Mode Transient Immunity (Min) | |
| Current | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Propagation Delay tpLH | |
| Pulse Width Distortion (Max) | |
| Rise | |
| Supplier Device Package | |
| Technology | |
| Voltage |

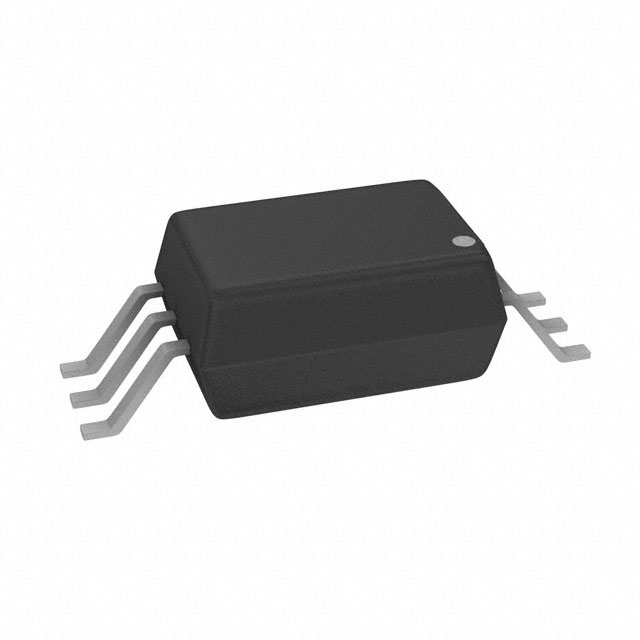

The FOD8314 from On Semiconductor is an optocoupler designed as a single-channel gate driver. It provides 5KV of isolation and is housed in a 6-SOP package suitable for surface mounting.
This gate driver operates with a voltage range of 16V to 30V and a current rating of 25 mA. Key electrical characteristics include a minimum common mode transient immunity of 20kV/µs, a rise time of 60ns/40ns, and a maximum pulse width distortion of 300ns. The propagation delay (tpLH) is specified at 500ns.
With a surface mount type and a 6-SOIC package measuring 0.268 inches with a 6.80mm width, the FOD8314 is designed for efficient integration into electronic circuits. It operates within an ambient temperature range of -40°C to 100°C.
The device is UL approved and meets RoHS3 compliance standards. Its moisture sensitivity level is MSL 1, indicating unlimited usability under standard conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.55 | $2.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the FOD8314 is between 16V and 30V.
The FOD8314 is available in a 6-SOP package, specifically a 6-SOIC measuring 0.268 inches with a 6.80mm width.
The FOD8314 operates within a temperature range of -40°C to 100°C.
The FOD8314 is RoHS3 Compliant.
