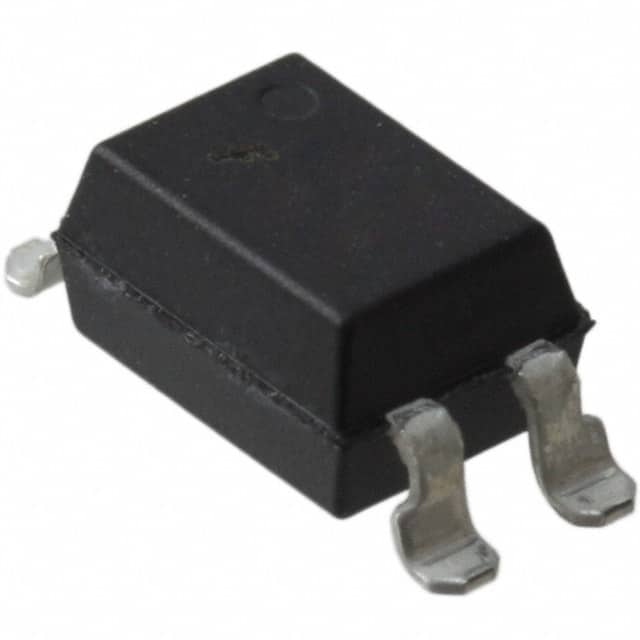

FOD817BSD The On Semiconductor FOD817BSD is a phototransistor output optocoupler with 5000Vrms isolation. It features a Surface Mount package and DC input.
Mfr Part #:

FOD817BSD

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor FOD817BSD is a phototransistor output optocoupler with 5000Vrms isolation. It features a Surface Mount package and DC input.
✓ Total Stock: 21,797 pcs
$ Price Range: $1.24

FOD817BSD Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FOD817BSD Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Transfer Ratio (Max)
Current Transfer Ratio (Min)
Input Type
Mounting Type
Number of Channels
Operating Temperature
Output Type
Rise
Supplier Device Package
Vce Saturation (Max)
Voltage
View Similar Products (0)

FOD817BSD Description

Short technical summary and product information.

The On Semiconductor FOD817BSD is a phototransistor output optocoupler designed for reliable signal isolation. It provides 5000Vrms of isolation voltage and operates with a DC input type.



Key electrical characteristics include a maximum input current of 50 mA and a Vce Saturation of 200mV. The current transfer ratio ranges from a minimum of 130% at 5mA to a maximum of 260% at 5mA. It has a minimum BVCEO of 70V, guaranteed.



This optocoupler is housed in a 4-SMD, Gull Wing package, suitable for surface mounting. It operates within a temperature range of -55°C to 110°C.



Typical applications for the FOD817 series include power supply regulators, digital logic inputs, and microprocessor inputs, making it a versatile component for various electronic designs.

FOD817BSD Quick Information

Product Type: Optocoupler
Series: FOD817
Canonical Name: On Semiconductor FOD817BSD Phototransistor Optocoupler
Subcategory: Phototransistor Output

FOD817BSD Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

FOD817BSD Estimated Pricing

Qty Low High
1+ $1.24 $1.24

Estimated market price range - modelled values for guidance only, not live distributor offers.

FOD817BSD Features

  • 5000Vrms isolation voltage rating.
  • Surface mount 4-SMD Gull Wing package.
  • DC input type.
  • 130% to 260% current transfer ratio.
  • Wide operating temperature range.

FOD817BSD Applications

  • Used in industrial signal isolation
  • Suitable for medical equipment
  • Applied in communication systems
  • Protects low-voltage control circuits

FOD817BSD FAQs

6 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the FOD817BSD optocoupler?

The FOD817BSD optocoupler provides 5000Vrms of isolation voltage.

What type of package is the FOD817BSD optocoupler in?

The FOD817BSD optocoupler is in a 4-SMD, Gull Wing package.

What is the operating temperature range for the FOD817BSD?

The operating temperature range for the FOD817BSD is -55°C to 110°C.

Is the FOD817BSD optocoupler RoHS compliant?

The FOD817BSD is RoHS3 Compliant.

What is the minimum current transfer ratio for the FOD817BSD?

The minimum current transfer ratio for the FOD817BSD is 130% at 5mA.

What is the maximum Vce Saturation voltage for the FOD817BSD?

The maximum Vce Saturation voltage for the FOD817BSD is 200mV.
