| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11,020 pcs
|
11020 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Transfer Ratio (Max) | |
| Current Transfer Ratio (Min) | |
| Input Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Rise | |
| Supplier Device Package | |
| Vce Saturation (Max) | |
| Voltage |

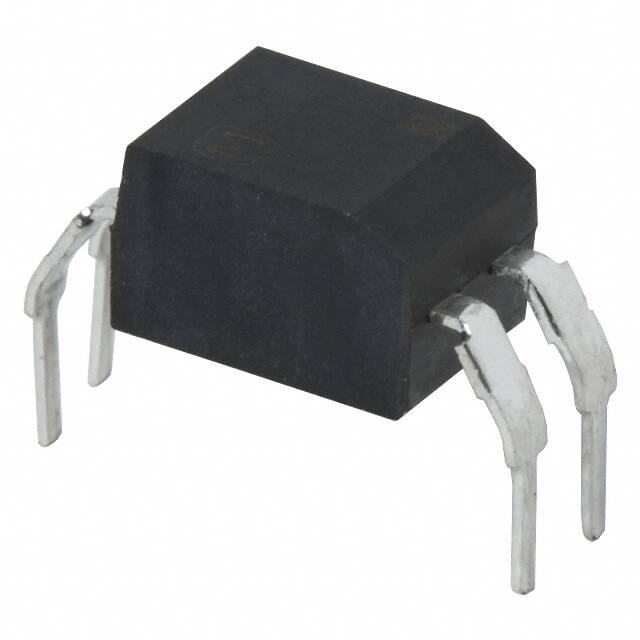

The ON Semiconductor FOD817B300W is a single-channel optocoupler designed for signal isolation applications. It provides 5000Vrms of isolation, ensuring safety and preventing noise transfer between circuits.
This optocoupler operates with a DC input type and a transistor output. It has a maximum input current rating of 50 mA and a guaranteed minimum current transfer ratio (CTR) of 130% at 5mA, with a maximum CTR of 260% at 5mA. The Vce saturation voltage is a maximum of 200mV.
The FOD817B300W is housed in a 4-DIP package suitable for through-hole mounting. It operates across a wide temperature range of -55°C to 110°C.
Typical applications include power supply regulators, digital logic inputs, and microprocessor inputs where reliable signal isolation is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.24 | $1.24 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FOD817B300W optocoupler provides 5000Vrms of isolation.
The minimum current transfer ratio is 130% at 5mA, and the maximum is 260% at 5mA.
The operating temperature range is -55°C to 110°C.
The FOD817B300W optocoupler is mounted using the through-hole method.
