FOD4108V

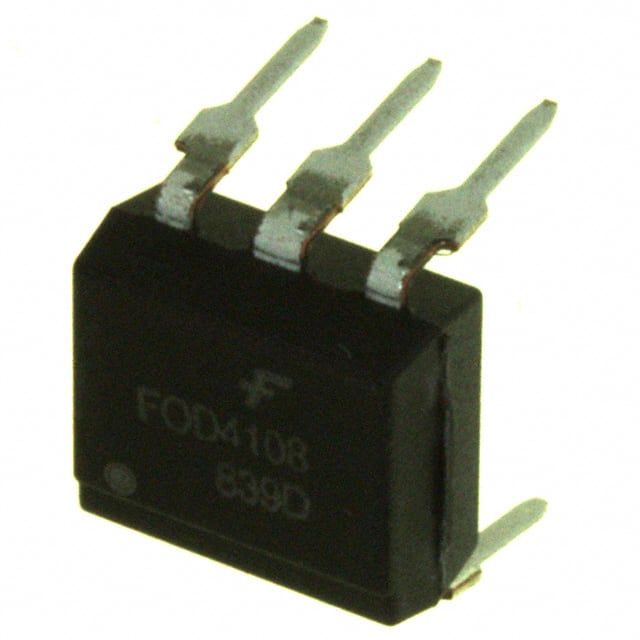

The FOD4108V from ON Semiconductor is a high-performance optoisolator featuring a hybrid triac output, suitable for applications requiring the driving of discrete triacs. This device is housed in a standard 6-pin dual in-line (DIP) package, designed for through-hole mounting.

Key electrical characteristics include a peak on-state current of 300 mA and a high blocking voltage of up to 800 V. It incorporates a zero-voltage crossing circuit, which is beneficial for reducing electromagnetic interference in AC power control applications. The optoisolator also boasts a high static dv/dt rating of 10 kV/µs and a typical turn-on time of 60 µs.

Safety and regulatory approvals include UL1577, with a 5000 V AC RMS rating for 1 minute, and compliance with DIN-EN/IEC60747-5-5 standards. The device operates within a temperature range of -55°C to 100°C. Its Pb-free and RoHS compliant status makes it suitable for modern electronic designs.

Applications for the FOD4108V include solid-state relays, industrial controls, lighting controls, static power switches, and AC motor starters. The through-hole mounting and DIP package facilitate integration into various circuit designs.
