| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43,923 pcs
|
43923 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Common Mode Transient Immunity (Min) | |
| Current | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Package / Case | |
| Propagation Delay tpLH | |
| Pulse Width Distortion (Max) | |
| Rise | |
| Supplier Device Package | |
| Technology | |
| Voltage |
The FOD3184 from On Semiconductor is a gate driver optocoupler designed for efficient signal isolation. It utilizes optical coupling technology to provide reliable isolation between circuits.
This component features a single channel and operates within a voltage range of 15V to 30V. Key electrical characteristics include a typical current of 25 mA, a minimum common mode transient immunity of 35kV/µs, and propagation delays of 210 ns. The rise and fall times are specified at 38 ns and 24 ns respectively, with a maximum pulse width distortion of 65 ns.

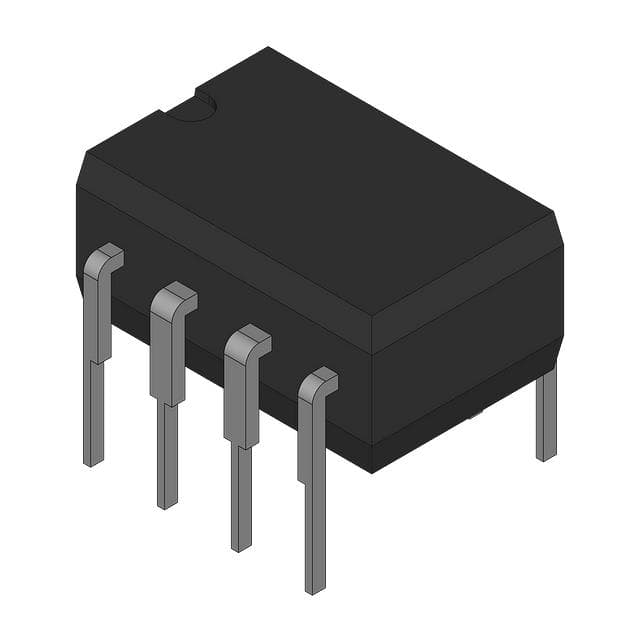

The FOD3184 is designed for through-hole mounting and comes in an 8-DIP package. It operates across a wide temperature range from -40°C to 100°C, making it suitable for various environmental conditions. The UL approval agency certification indicates compliance with relevant safety standards.
This gate driver optocoupler is a component for applications requiring robust isolation and precise signal control.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.55 | $2.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FOD3184 operates within a voltage range of 15V to 30V.
The FOD3184 operates from -40°C to 100°C.
The FOD3184 is available in an 8-DIP package.
The FOD3184 is designed for through-hole mounting.
The FOD3184 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the FOD3184 is 1 Unlimited.
