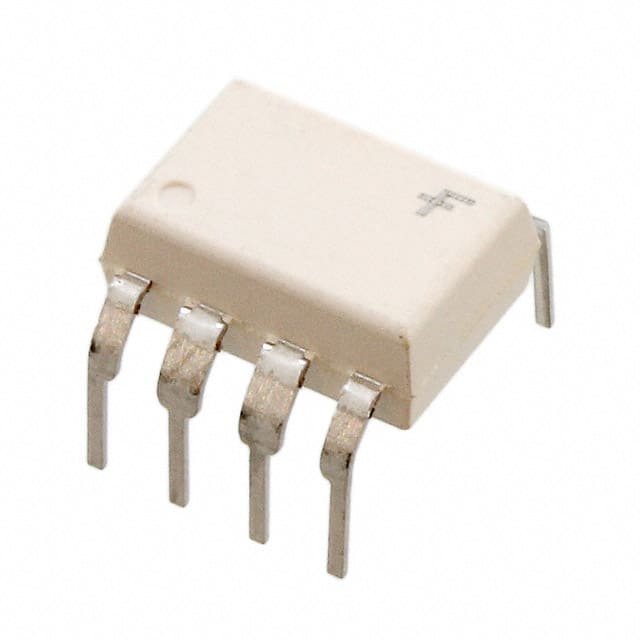

The ON Semiconductor FOD3180TV is a 2A output current, high-speed MOSFET gate driver optocoupler. It integrates an AlGaAs LED with a CMOS detector and power stage, making it ideal for driving power MOSFETs in applications like plasma display panels, motor control inverters, and high-performance DC/DC converters.
Key electrical specifications include a minimum peak output current of 2.5A, a maximum propagation delay of 200ns, and a wide VCC operating range of 10V to 20V. The device provides 5000Vrms isolation and features under-voltage lockout protection (UVLO) with hysteresis. It operates reliably within a guaranteed temperature range of -40°C to +100°C.
Packaged in an 8-pin DIP with through-hole mounting, the FOD3180TV is designed for compatibility with 260°C reflow processes. It meets RoHS3 compliance and is approved by C-UL, UL, and VDE. The minimum creepage and clearance distances are both 7.0 mm, contributing to its robust isolation capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.55 | $2.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FOD3180TV has a minimum peak output current of 2.5 A.
The isolation voltage for the FOD3180TV is 5000 Vrms.
The FOD3180TV operates within a temperature range of -40°C to 100°C.
The supply voltage range for the FOD3180TV is 10V to 20V.
The FOD3180TV is available in an 8-DIP (0.400", 10.16mm) package.
Yes, the FOD3180TV is RoHS3 Compliant.
