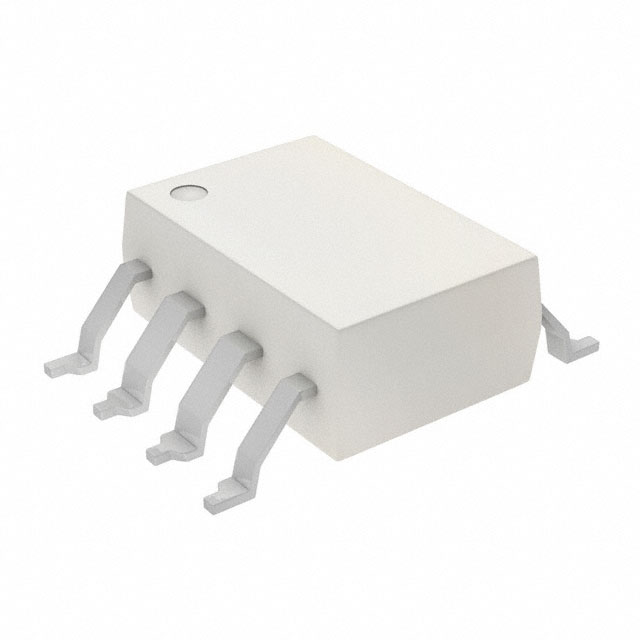

The FOD3120TSR2V from On Semiconductor is a high-performance gate drive optocoupler capable of driving most medium-power IGBT and MOSFET devices. It is particularly well-suited for fast switching applications in motor control inverters and high-performance power systems.
This optocoupler features a 2.5A peak output current driving capability and utilizes onsemi’s OPTOPLANAR packaging technology for high noise immunity, characterized by a minimum common mode rejection of 35 kV/µs. It operates over a wide supply voltage range of 15V to 30V and offers fast switching speeds with a maximum propagation delay of 400 ns and a maximum pulse width distortion of 100 ns.
The device is designed with a push-pull MOSFET output stage, enabling output voltage swing close to the supply rail. It includes Under Voltage LockOut (UVLO) with hysteresis for reliable operation. The FOD3120TSR2V is suitable for industrial inverters, uninterruptible power supplies, and induction heating applications.
Packaged in an 8-SMD Gull Wing configuration, this surface-mount device operates within an extended industrial temperature range of -40°C to 100°C. It meets safety and regulatory standards including UL1577 (5000 VRMS for 1 min) and DIN EN/IEC60747-5-5, and is a Pb-Free device.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.55 | $2.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FOD3120TSR2V has a peak output current driving capability of 2.5 A.
The isolation voltage for the FOD3120TSR2V is 5000 VRMS.
The FOD3120TSR2V operates from a supply voltage range of 15 V to 30 V.
The operating temperature range for the FOD3120TSR2V is -40°C to 100°C.
The FOD3120TSR2V is available in an 8-SMD, Gull Wing package.
The maximum propagation delay for the FOD3120TSR2V is 400 ns.
Yes, the FOD3120TSR2V is RoHS3 Compliant.
