FOD260L The On Semiconductor FOD260L is a high-speed logic gate optocoupler featuring 5000Vrms isolation and an open collector output. It operates at data rates up to 10Mbps.
Mfr Part #:

FOD260L

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The On Semiconductor FOD260L is a high-speed logic gate optocoupler featuring 5000Vrms isolation and an open collector output. It operates at data rates up to 10Mbps.
✓ Total Stock: 23,000 pcs
$ Price Range: $0.50

FOD260L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
23,000 pcs
On Request
23000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FOD260L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Common Mode Transient Immunity (Min)
Current
Data Rate
Input Type
Inputs
Mounting Type
Number of Channels
Operating Temperature
Output Type
Propagation Delay tpLH
Rise
Supplier Device Package
Voltage
View Similar Products (0)

FOD260L Description

Short technical summary and product information.

The On Semiconductor FOD260L is a high-speed logic gate optocoupler designed for applications requiring robust signal isolation. It offers a data rate of 10 Mbps and features an open collector output with Schottky clamping.



This optocoupler provides superior common mode transient immunity of 50 kV/µs at 1000V, ensuring reliable operation in noisy environments. It is suitable for a wide operating temperature range of -40°C to +85°C and supports a fan-out of 8.

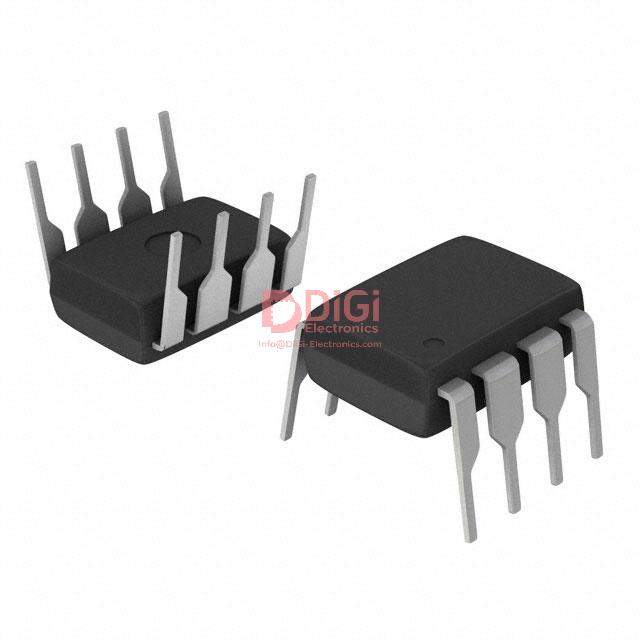

The FOD260L is housed in an 8-DIP (0.300", 7.62mm) through-hole package. Safety and regulatory approvals include UL1577 and DIN EN/IEC 60747-5-2, making it suitable for various industrial and communication applications.



Key electrical characteristics include a maximum working insulation voltage of 565 Vpeak, with specific creepage and clearance distances defined for safe integration. The device supports DC input and has defined propagation delays and rise/fall times.

FOD260L Quick Information

Product Type: Optocoupler
Canonical Name: On Semiconductor FOD260L Logic Gate Optocoupler
Subcategory: Logic Output Optoisolators

FOD260L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FOD260L Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

FOD260L Features

  • High-speed 10 Mbps data rate.
  • 5000Vrms isolation voltage.
  • Superior 50 kV/µs common mode transient immunity.
  • Open collector, Schottky clamped output.
  • Wide -40°C to 85°C operating temperature.

FOD260L Applications

  • Eliminates ground loops.
  • Used for line receivers.
  • Suitable for data transmission.
  • Replaces pulse transformers.
  • Interface for switching power supplies.

FOD260L FAQs

6 frequently asked questions generated from this part’s specifications.
What is the data rate of the FOD260L optocoupler?

The FOD260L optocoupler has a data rate of 10 Mbps.

What is the isolation voltage of the FOD260L?

The isolation voltage for the FOD260L is 5000Vrms.

What is the operating temperature range for the FOD260L?

The FOD260L operates within a temperature range of -40°C to 85°C.

What type of package is the FOD260L in?

The FOD260L is available in an 8-DIP (0.300", 7.62mm) package.

What is the common mode transient immunity of the FOD260L?

The FOD260L has a common mode transient immunity of 50 kV/µs at 1000V.

What are the safety and regulatory approvals for the FOD260L?

The FOD260L has UL1577 and DIN EN/IEC 60747-5-2 approvals.
