| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Width |

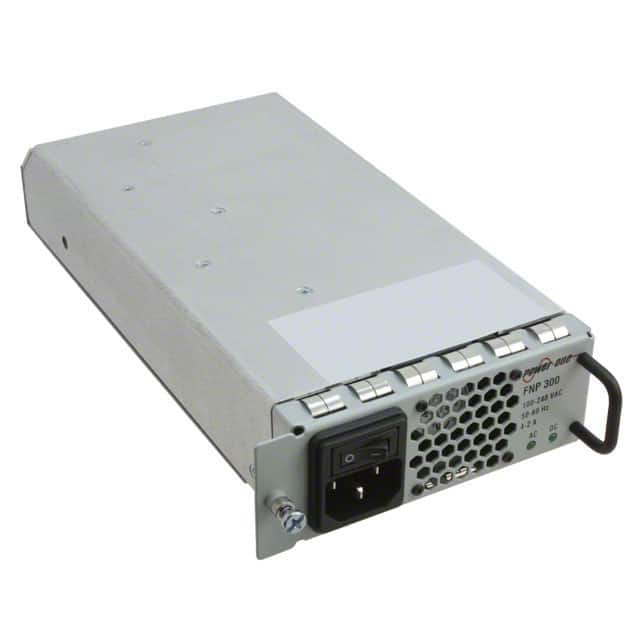

The Bel Power Solutions FNP300-1024G is a high-efficiency AC-DC power supply designed for various applications. It provides two outputs: a primary high current output of 24V at 12.5A and a secondary standby output of 12V at 700mA, delivering a total of 300W.
This converter features a wide input voltage range of 85-264 VAC, making it suitable for global use. Key electrical specifications include an efficiency of 86% and an isolation voltage of 4 kV. It also incorporates features such as an I²C interface, remote sense, and universal input.
The FNP300-1024G is designed for rack mounting and has a compact cassette form factor with dimensions of 101.6mm x 41.9mm x 215.9mm. It operates within an ambient temperature range of 0°C to 55°C and meets international safety standards, displaying the CE Mark for the Low Voltage Directive.
Protection features include overtemperature, output overvoltage, and output overcurrent protection. The unit also includes an ORing diode for redundant operation, making it suitable for demanding applications.
The FNP300-1024G has a primary output of 24V at 12.5A and a secondary output of 12V at 700mA.
The FNP300-1024G accepts a wide input voltage range of 85 to 264 VAC.
The FNP300-1024G provides a maximum power output of 300W.
The operating temperature range for this converter is 0°C to 55°C.
Yes, the FNP300-1024G features an I²C interface.
