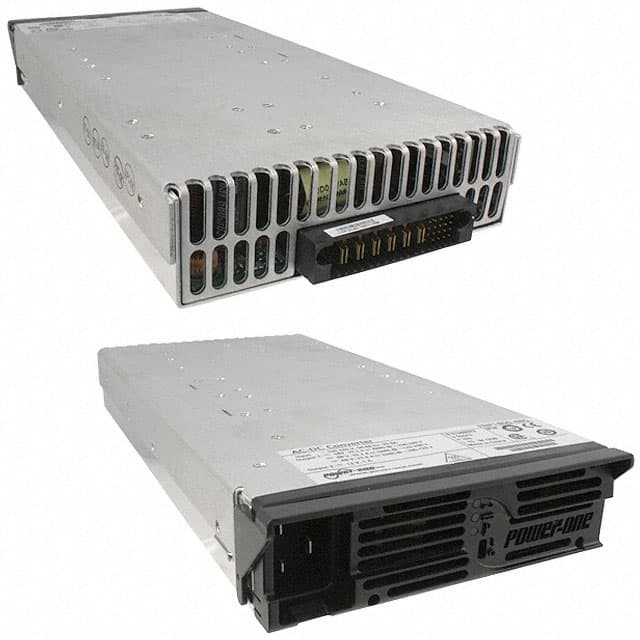

The Bel Power Solutions FNP1800-48G is a high-density front-end AC DC converter designed for demanding applications. It provides a primary output of 48VDC at up to 39.2A and a secondary 12VDC standby output at 1A, with a total rated power of 1800W. The unit operates with a wide input voltage range of 85 to 264 VAC and boasts an efficiency of 90%, contributing to reduced operating costs.
Key features include an I²C interface for status monitoring and control, adjustable output voltage, remote sense capabilities, and a standby output. The converter is designed for rack mount installations and has dimensions of 279.4mm x 40.5mm x 141.2mm. It operates within a temperature range of 0°C to 70°C with derating.
This power supply is suitable for ITE (Commercial) applications and meets international safety standards, displaying the CE mark for the European Low Voltage Directive. Its robust design and features make it ideal for use in hot-swap redundant systems and distributed power architectures.
The FNP1800-48G has a primary output voltage of 48 VDC and a secondary standby output voltage of 12 VDC.
The input voltage range for the FNP1800-48G is 85 to 264 VAC.
The rated power for the FNP1800-48G is 1800W.
The operating temperature range is 0°C to 70°C with derating.
Yes, the FNP1800-48G features an I2C interface for status and control.
