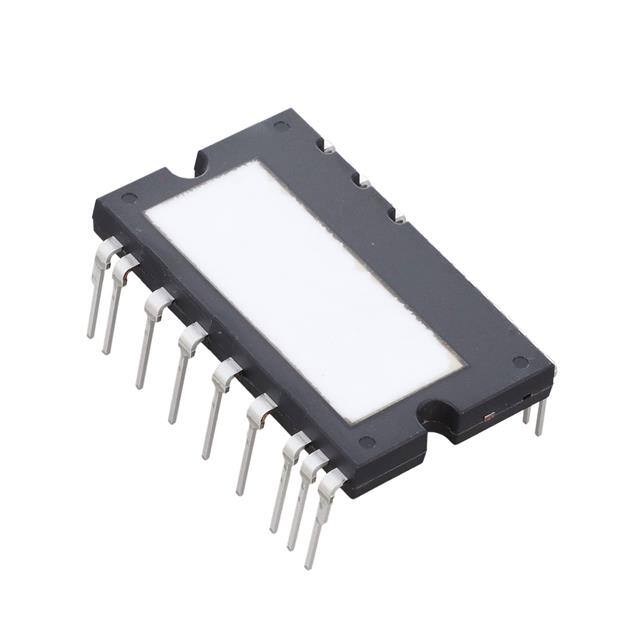

The FND42060F2 is a Motion SPM 45 series module from On Semiconductor, providing a fully integrated 600V 20A three-phase IGBT inverter output stage. It combines optimized gate drive circuitry with built-in IGBTs to minimize EMI and losses, while offering multiple protection features including under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting.
The module is designed for AC induction, BLDC, and PMSM motor control in home appliances and industrial applications. It features a built-in NTC thermistor for temperature monitoring, integrated bootstrap diodes, and separate open-emitter pins for low-side IGBTs to support three-phase current sensing. The module operates from a single grounded power supply and is optimized for a 5 kHz switching frequency.
The FND42060F2 is housed in a 26-PowerDIP through-hole package with a 4000Vrms isolation rating. It is UL certified (No. E209204) and includes low-loss, short-circuit rated IGBTs on a ceramic substrate for low thermal resistance.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.31 | $21.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FND42060F2 is rated for 600V DC bus voltage.
The FND42060F2 is rated for 20A continuous current.
The isolation voltage is 4000Vrms minimum.
The module is optimized for a 5 kHz switching frequency.
Yes, it has a built-in NTC thermistor for temperature monitoring.
It is a through-hole 26-PowerDIP module (1.024", 26.00mm).
RoHS3 compliant status is claimed but unverified.
