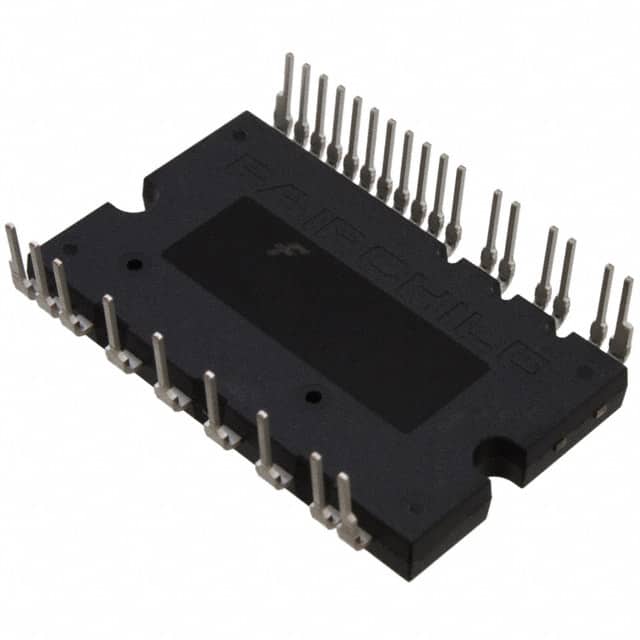

FNA41560T2 FNA41560T2 is a 600V, 15A 3-Phase IGBT inverter module from On Semiconductor's Motion SPM 45 series. It features integrated gate drives, protection, and a through-hole 26-PowerDIP package.
Mfr Part #:

FNA41560T2

Available from 4 distributors
Mfr Name: On Semiconductor
On Semiconductor
FNA41560T2 is a 600V, 15A 3-Phase IGBT inverter module from On Semiconductor's Motion SPM 45 series. It features integrated gate drives, protection, and a through-hole 26-PowerDIP package.
✓ Total Stock: 24,739 pcs
$ Price Range: $7.89 - $13.63

FNA41560T2 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FNA41560T2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Halogen Free
Input Logic Level
Mounting Type
Number of Pins
Storage Temperature
Tape & Reel
Type
Voltage
View Similar Products (0)

FNA41560T2 Description

Short technical summary and product information.

The FNA41560T2 is a Motion SPM 45 module from On Semiconductor, providing a fully-featured, high-performance inverter output stage for AC induction, BLDC, and PMSM motors. It integrates optimized gate drive for the built-in IGBTs to minimize EMI and losses, while offering multiple on-module protection features including under-voltage lockouts, over-current shutdown, thermal monitoring, and fault reporting.



Key electrical specifications include a collector-emitter voltage rating of 600 V and a collector current rating of 15 A. The module is short-circuit rated and features built-in bootstrap diodes, dedicated Vs pins, and separate open-emitter pins for low-side IGBTs to enable three-phase current sensing. It also includes a built-in NTC thermistor for temperature monitoring.



The module is mounted in a 26-PowerDIP through-hole package and provides an isolation voltage of 2000 Vrms. It is UL certified (E209204) and compliant with Pb-Free and Halogen Free/BFR Free requirements. The input logic level is compatible with 3.3V/5V signals.

FNA41560T2 Quick Information

Product Type: IGBT Inverter Module
Series: Motion SPM 45
Canonical Name: FNA41560T2 Motion SPM 45 3-Phase IGBT Inverter Module
Subcategory: 3-Phase Inverter

FNA41560T2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

FNA41560T2 Estimated Pricing

Qty Low High
1+ $13.63 $13.63
12+ $8.25 $8.25
108+ $7.89 $7.89

Estimated market price range - modelled values for guidance only, not live distributor offers.

FNA41560T2 Features

  • 600V, 15A 3-Phase IGBT inverter module.
  • Integrated gate drive with protection features.
  • Short-circuit-rated IGBTs and built-in NTC thermistor.
  • UL certified (E209204) and Pb-Free/Halogen Free.
  • Through-hole 26-PowerDIP package with 2000Vrms isolation.

FNA41560T2 Applications

  • Motion control for home appliance motors.
  • Industrial motor drives.
  • AC induction, BLDC, and PMSM motor control.

FNA41560T2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the collector-emitter voltage rating of the FNA41560T2?

600 V.

What is the current rating of the FNA41560T2?

15 A.

What is the package type of the FNA41560T2?

26-PowerDIP Module (1.134", 28.80mm).

Is the FNA41560T2 UL certified?

Yes, UL E209204 (UL1557).

Does the FNA41560T2 have a built-in NTC thermistor?

Yes.

What is the isolation voltage of the FNA41560T2?

2000 Vrms.

Is the FNA41560T2 RoHS compliant?

The part is listed as RoHS3 Compliant (unverified) and the datasheet confirms it is Pb-Free and Halogen Free/BFR Free.
