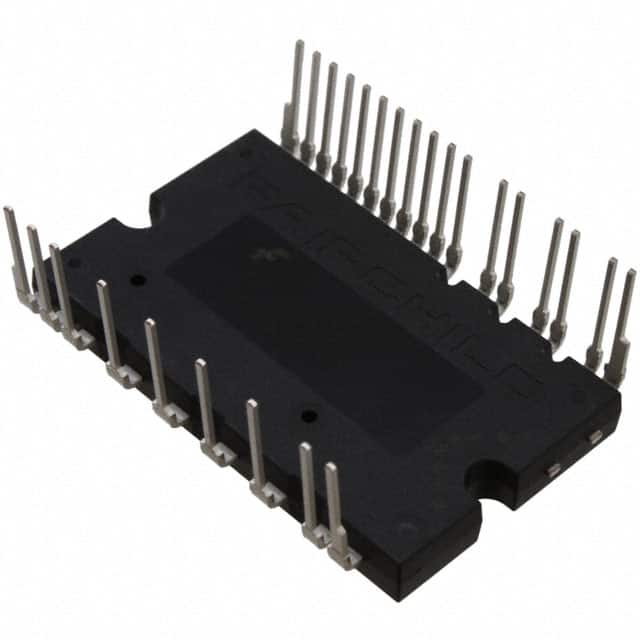

FNA41560B2 The FNA41560B2 is a 600V, 15A 3-Phase IGBT inverter module from On Semiconductor with integral gate drivers and protection. It features a 2000Vrms isolation rating and is optimized for 5kHz switching frequency.
Mfr Part #:

FNA41560B2

Available from 3 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FNA41560B2 is a 600V, 15A 3-Phase IGBT inverter module from On Semiconductor with integral gate drivers and protection. It features a 2000Vrms isolation rating and is optimized for 5kHz switching frequency.
✓ Total Stock: 3,838 pcs
$ Price Range: $16.25

FNA41560B2 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
2,304 pcs
On Request
2304 pcs On Request 1 On Request On Request On Request On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,000 pcs
On Request
1000 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
534 pcs
On Request
534 pcs On Request 1 On Request On Request 20+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FNA41560B2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Halogen Free
Mounting Type
SVHC Present
Tape & Reel
Type
Voltage
View Similar Products (0)

FNA41560B2 Description

Short technical summary and product information.

The FNA41560B2 is a Motion SPM 45 Series power module from On Semiconductor, integrating a 600V, 15A 3-Phase IGBT inverter output stage with built-in gate drivers and protection features. It is designed for AC induction, BLDC, and PMSM motor drives in home appliance and industrial motion control applications.



The module operates with a collector-emitter voltage rating of 600V and a continuous output current of 15A. It provides an isolation voltage of 2000Vrms (1 minute) and is optimized for a switching frequency of 5 kHz. The IGBTs are short-circuit rated and feature low thermal resistance using a ceramic substrate. The module includes a built-in NTC thermistor for temperature monitoring, bootstrap diodes, and separate open-emitter pins for three-phase current sensing.



The FNA41560B2 is housed in a 26-PowerDIP module (1.024", 26.00mm) with through-hole mounting. It is supplied in tubes with a standard quantity of 12 units per tube. The module is Pb-Free and Halide Free per the datasheet, and is UL certified (E209204).

FNA41560B2 Quick Information

Product Type: Power Driver Module
Series: Motion SPM 45
Canonical Name: FNA41560B2 Motion SPM 45 Series IGBT Power Module
Subcategory: Inverter Output Stage

FNA41560B2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Pb-Free

FNA41560B2 Estimated Pricing

Qty Low High
1+ $16.25 $16.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

FNA41560B2 Features

  • 600V, 15A 3-phase IGBT inverter module.
  • Integral gate drivers and protection features.
  • 2000Vrms isolation rating for safety.
  • Optimized for 5kHz switching frequency.
  • Built-in NTC thermistor for temperature monitoring.

FNA41560B2 Applications

  • Ideal for AC induction motor drives.
  • Suitable for BLDC and PMSM motor control.
  • Used in home appliance motion control.
  • Industrial inverter applications.

FNA41560B2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the FNA41560B2?

The collector-emitter voltage rating is 600V.

What is the package type of the FNA41560B2?

26-PowerDIP Module (1.024", 26.00mm) with through-hole mounting.

Is the FNA41560B2 RoHS compliant?

RoHS compliance is not confirmed from the datasheet; however, the datasheet confirms Pb-Free and Halide Free.

What is the isolation voltage of the module?

2000Vrms (1 minute).

What switching frequency is the module optimized for?

5 kHz.

What protection features are included in the FNA41560B2?

Under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting.

What applications is the FNA41560B2 designed for?

AC induction, BLDC, and PMSM motor drives in home appliance and industrial motion control.
