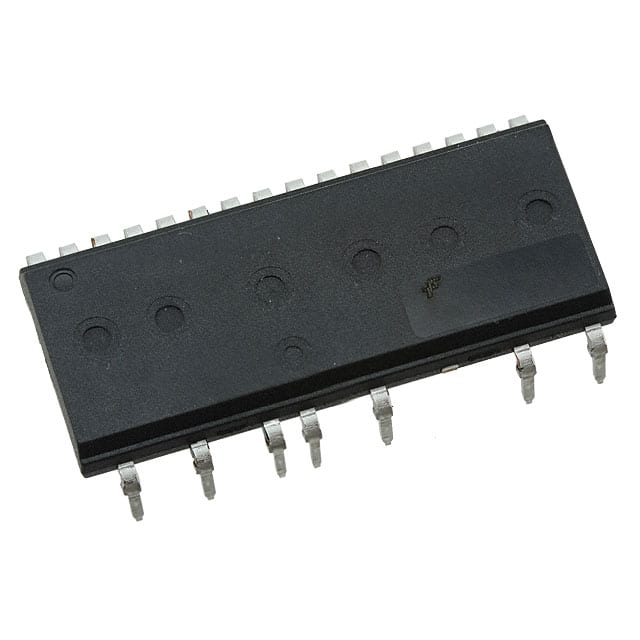

FNA27560 The FNA27560 is an IGBT 3-phase power driver module from ON Semiconductor. It features 75A collector current, 2500Vrms isolation, and a through-hole 34-PowerDIP package.
Mfr Part #:

FNA27560

Available from 1 distributors
Mfr Name: On Semiconductor
On Semiconductor
The FNA27560 is an IGBT 3-phase power driver module from ON Semiconductor. It features 75A collector current, 2500Vrms isolation, and a through-hole 34-PowerDIP package.
✓ Total Stock: 30 pcs
$ Price Range: $56.52 - $65.87

FNA27560 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
30 pcs
On Request
30 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FNA27560 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Medical Grade
Mounting Type
Tape & Reel
Type
Voltage
View Similar Products (0)

FNA27560 Description

Short technical summary and product information.

The FNA27560 is an IGBT power driver module designed for three-phase bridge configurations. It is rated for a collector current of 75 A and provides an isolation voltage of 2500 Vrms. The module is housed in a 34-PowerDIP package (1.480", 37.60mm) and is intended for through-hole mounting.



This component is suitable for motor drive inverters, power conversion systems, and industrial automation applications. The module integrates IGBT technology for efficient switching and high current handling.



Compliance information includes RoHS3 Compliant, MSL 1 (unlimited), and REACH Unaffected, though these statuses are unverified and should be confirmed with the manufacturer. The part may have originated from Fairchild Semiconductor, now part of ON Semiconductor.

FNA27560 Quick Information

Product Type: Power Driver Module
Series: Motion SPM 2
Canonical Name: FNA27560 IGBT 3-Phase Power Driver Module
Subcategory: 3-Phase Bridge

FNA27560 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FNA27560 Estimated Pricing

Qty Low High
1+ $65.87 $65.87
10+ $62.47 $62.47
100+ $56.52 $56.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

FNA27560 Features

  • IGBT 3-phase bridge configuration.
  • Rated for 75A collector current.
  • 2500Vrms isolation voltage.
  • Through-hole mounting in 34-PowerDIP package.
  • RoHS3 compliant (unverified).

FNA27560 Applications

  • Used in motor drive inverters.
  • Suitable for power conversion systems.
  • Ideal for industrial automation.
  • Applicable in renewable energy inverters.

FNA27560 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the package type of the FNA27560?

34-PowerDIP Module (1.480", 37.60mm).

Is the FNA27560 RoHS compliant?

Yes, it is listed as RoHS3 Compliant, but this is unverified.

What is the collector current rating?

75 A.

What is the isolation voltage?

2500 Vrms.

What is the mounting type?

Through Hole.

What is the configuration?

3 Phase.

What is the component type?

IGBT.
