NFAM3065L4BTL
On Semiconductor
The NFAM3065L4BTL is a power driver module designed for 3-phase inverter applications, featuring a 30A current rating and 2500 Vrms voltage capability.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Configuration | |
| Current | |
| Mounting Type | |
| Tape & Reel | |
| Type | |
| Voltage |

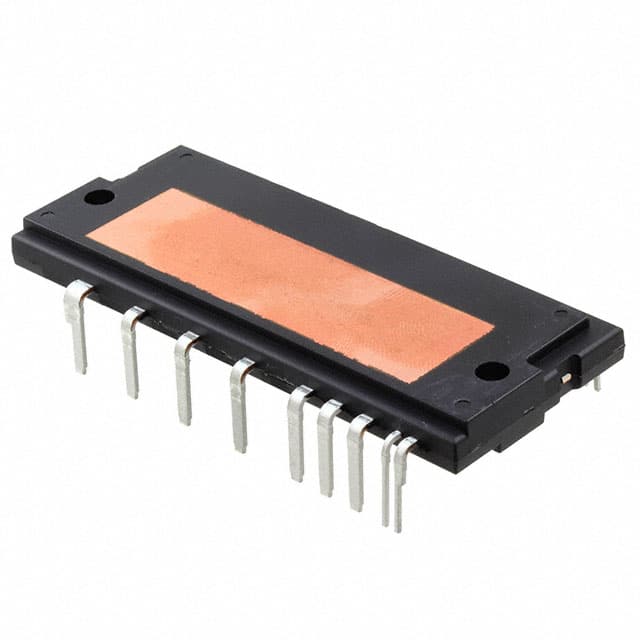

The FNA23060 is an IGBT 3 Phase Inverter Module designed for power conversion applications. It features a 30A continuous current rating and a voltage rating of 2500Vrms. The module is configured as a three-phase inverter, making it suitable for motor drives and industrial power systems.
The device is housed in a 34-PowerDIP module with through-hole mounting for secure attachment to PCBs. The package dimensions are 1.480 inches (37.60mm) in length. The module is RoHS3 compliant and has an MSL rating of 1 (unlimited), though these compliance values are unverified.
This component is intended for use in applications requiring high-voltage and moderate current switching. Proper thermal management and gate drive design are essential for reliable operation. The FNA23060 is a direct replacement for the Fairchild part number with underscore replaced by dash per ON Semiconductor's part numbering system.
2500 Vrms.
30 A.
34-PowerDIP Module (1.480", 37.60mm).
Through Hole.
Yes, RoHS3 Compliant (unverified).
3 Phase Inverter.
1 Unlimited (unverified).
