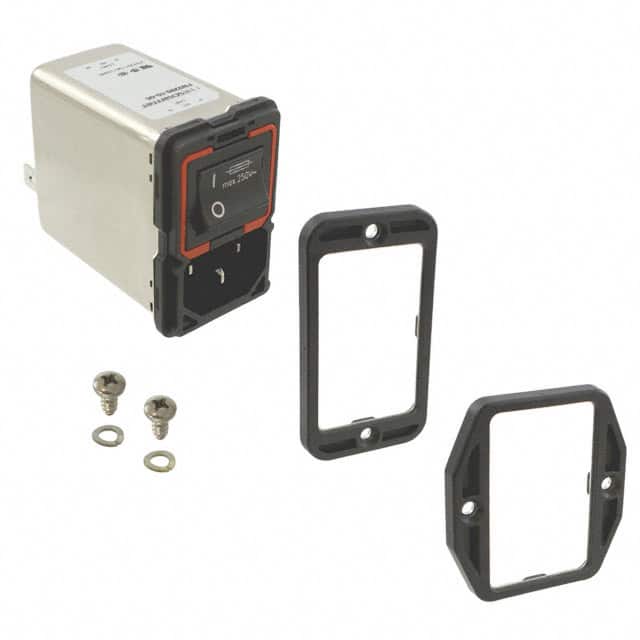

FN9280-10-100 Schaffner FN9280-10-100 is a filtered IEC 320-C14 power entry module with a 2-pole rocker switch and dual fuse holder. It is rated for 10A at 250VAC and features spring-cage terminals.
Mfr Part #:

FN9280-10-100

Available from 1 distributors
Mfr Name: Schaffner
Schaffner
Schaffner FN9280-10-100 is a filtered IEC 320-C14 power entry module with a 2-pole rocker switch and dual fuse holder. It is rated for 10A at 250VAC and features spring-cage terminals.
✓ Total Stock: 4 pcs
$ Price Range: $31.60 - $43.77

FN9280-10-100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FN9280-10-100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accomodates a Fuse
Approval Agency
Connector Style
Connector Type
Current Rating
Features
Filter Type
Fuse Holder, Drawer
Fuse Size
Ingress Protection
Material Flammability Rating
Medical Grade
Mounting Type
Number of Positions
Operating Temperature Range
Panel Cutout Dimensions
Storage Temperature
Switch Features
Termination
Termination Style
View Similar Products (0)

FN9280-10-100 Description

Short technical summary and product information.

The Schaffner FN9280-10-100 is an ultra-compact filtered power entry module with an IEC 320-C14 connector. It combines a single-stage EMI filter, a 2-pole rocker switch, and a dual fuse holder for 5x20mm fuses in one panel-mount package. This module is rated for 10A continuous current at 250VAC (50/60Hz) and operates from DC to 400Hz. It is designed for panel mount with a rectangular cutout of 28.80mm x 47.10mm and uses spring-cage terminals for quick wiring. The module features a front or rear side mounting option and offers IP40 protection on the front side. It is approved by CQC, CSA, ENEC, and UL, with a flammability rating of UL94 V-2. The switch is rated for 10A (4A inductive) at 250VAC under ENEC, with mechanical life of 50,000 cycles and electrical life of 6,000 operations (UL) or 10,000 operations (ENEC). The module includes a twin fused holder (fuses not included) and accepts 5x20mm fuses. Typical applications include industrial equipment, medical devices, and test instruments where compact EMI filtering and power entry are needed.

FN9280-10-100 Quick Information

Product Type: Power Entry Module (PEM)
Series: FN9280
Canonical Name: IEC 320-C14 Power Entry Module with EMI Filter, Switch, and Fuse Holder
Subcategory: Filtered Power Entry Module

FN9280-10-100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FN9280-10-100 Estimated Pricing

Qty Low High
1+ $43.77 $43.77
10+ $36.03 $36.03
25+ $32.87 $32.87
40+ $32.86 $32.86
120+ $32.73 $32.73
280+ $31.60 $31.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

FN9280-10-100 Features

  • IEC 320-C14 panel mount receptacle.
  • Integrated EMI filter for conducted noise.
  • 2-pole rocker switch with On-Off.
  • Dual fuse holder for 5x20mm fuses.
  • Spring-cage terminals for quick wiring.

FN9280-10-100 Applications

  • Suitable for industrial power supply units.
  • Used in medical equipment requiring EMI filtering.
  • Ideal for test and measurement instruments.

FN9280-10-100 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector style of the FN9280-10-100?

IEC 320-C14.

How many positions does this connector have?

3 positions.

What is the current rating of the FN9280-10-100?

10 A.

What is the maximum voltage rating?

250 VAC.

What type of mounting does this module use?

Panel Mount with flange.

Does it include a fuse holder?

Yes, a twin fused holder for 5x20mm fuses (fuses not included).

What approvals does the FN9280-10-100 have?

CQC, CSA, ENEC, UL.
