| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12 pcs
|
12 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Capacitance (CX) | |
| Capacitance (Cy) | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| High Potential Test Voltage (@ P->N) | |
| High Potential Test Voltage (@ P->PE) | |
| Inductance | |
| Ingress Protection | |
| Leakage Current | |
| MTBF | |
| Material Flammability Rating | |
| Maximum Continuous Operating Voltage | |
| Medical Grade | |
| Mounting Type | |
| Nominal Operating Voltage | |
| Number of Positions | |
| Operating Frequency | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Resistance (Discharge) | |
| Storage Temperature | |
| Switch Features | |
| Switch Inrush Current | |
| Switch Life | |
| Termination | |
| Termination Style | |
| Weight |

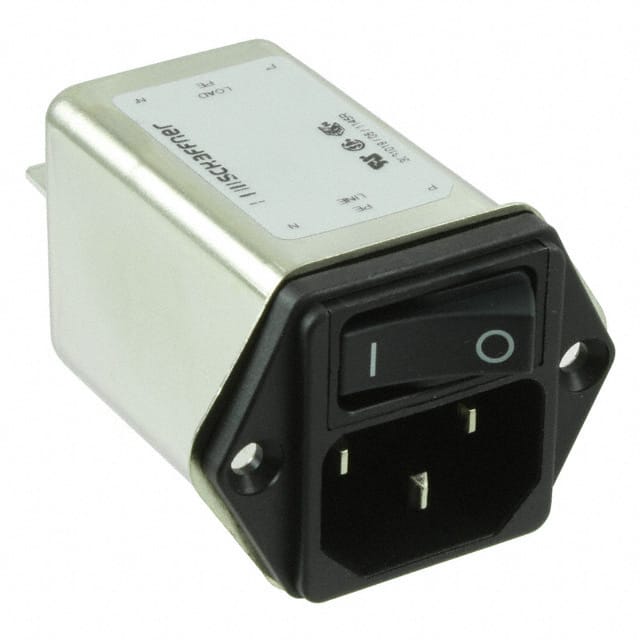

The Schaffner FN9264-4-06 is a filtered power entry module (PEM) designed for general-purpose applications requiring EMC filtering and a disconnect switch. It features an IEC 320-C14 male blade receptacle with a 2-pole on-off rocker switch, providing both power entry and switching in a single panel-mount component.
The module is rated for a nominal voltage of 230 VAC and a maximum continuous operating voltage of 250 VAC at 50/60 Hz, with a current rating of 4 A at 40°C. It operates from DC up to 400 Hz. Electrical characteristics include a 1 mH inductance, 0.1 µF X-capacitance (Cx), 2.2 nF Y-capacitance (Cy), and a 1000 kΩ discharge resistor. Leakage current is 0.31 mA typical at 250 VAC/50 Hz.
The FN9264-4-06 is panel mounted via a flange, using quick connect (Faston) 0.250" (6.3 mm) terminals. The rectangular panel cutout measures 29.00 mm by 33.00 mm. It provides IP40 ingress protection per IEC 60529, and the housing material meets UL94 V-2 flammability rating.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.67 | $21.67 |
| 10+ | $18.73 | $18.73 |
| 25+ | $17.56 | $17.56 |
| 60+ | $16.66 | $16.66 |
| 120+ | $15.49 | $15.49 |
| 300+ | $14.70 | $14.70 |
| 540+ | $14.62 | $14.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FN9264-4-06 is rated for 4 A at 40°C.
Maximum continuous operating voltage is 250 VAC at 50/60 Hz; nominal operating voltage is 230 VAC.
It is a panel mount module with a flange, requiring a rectangular panel cutout of 29.00 mm by 33.00 mm.
Yes, it includes a 2-pole on-off (I-0) non-illuminated rocker switch rated for 100 A inrush current and 50,000 operations.
Termination is quick connect 0.250" (6.3 mm) Faston terminals. Ingress protection rating is IP40.
