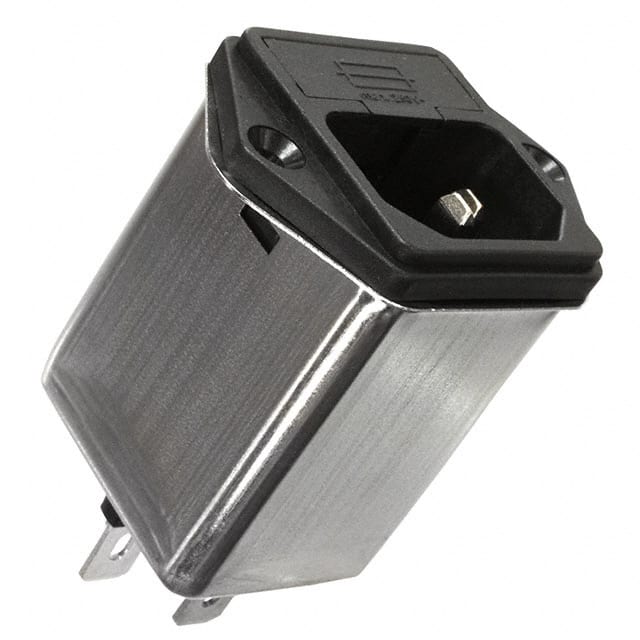

FN9260B-4-06 Schaffner FN9260B-4-06 is a filtered IEC 320-C14 power entry module rated at 4A and 250VAC, with panel mount flange and quick connect termination.
Mfr Part #:

FN9260B-4-06

Available from 1 distributors
Mfr Name: Schaffner
Schaffner
Schaffner FN9260B-4-06 is a filtered IEC 320-C14 power entry module rated at 4A and 250VAC, with panel mount flange and quick connect termination.
✓ Total Stock: 3,400 pcs
$ Price Range: $12.76 - $19.13

FN9260B-4-06 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,400 pcs
On Request
3400 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FN9260B-4-06 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accomodates a Fuse
Approval Agency
Connector Style
Connector Type
Current Rating
Filter Type
Fuse Holder, Drawer
Inductance
Ingress Protection
Lead Style
Material Flammability Rating
Medical Grade
Mounting Type
Number of Positions
Panel Cutout Dimensions
Resistance
Storage Temperature
Termination
Termination Style
Weight
View Similar Products (0)

FN9260B-4-06 Description

Short technical summary and product information.

The Schaffner FN9260B-4-06 is a power entry module that combines an IEC 320-C14 inlet, an integrated EMI/RFI filter, and a twin fuse holder in a compact panel-mount package. It is rated for 4A continuous current at 250VAC, with an operating frequency range from DC to 400Hz. The module features a 1.0mH inductance, 0.1µF X-capacitor, 2.2nF Y-capacitors, and a leakage current of 0.31mA at 250VAC/50Hz. It provides IP40 protection and requires a rectangular panel cutout of 29.00mm x 33.00mm. Termination is via quick connect tabs (0.250" / 6.3mm). The housing meets UL94 V-2 flammability, and the module holds approvals from CQC, CSA, ENEC, and UL. It is suitable for both commercial and medical equipment, with a temperature range of -25°C to +85°C and an MTBF of 2,200,000 hours. Weight is 55g.

FN9260B-4-06 Quick Information

Product Type: Power Entry Module (PEM)
Series: FN9260
Canonical Name: IEC 320-C14 Power Entry Module, Filtered, 4A, 250 VAC, Panel Mount
Subcategory: Filtered Power Entry Module

FN9260B-4-06 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FN9260B-4-06 Estimated Pricing

Qty Low High
1+ $19.13 $19.13
10+ $16.86 $16.86
25+ $15.72 $15.72
60+ $14.55 $14.55
120+ $13.86 $13.86
300+ $13.16 $13.16
540+ $12.76 $12.76

Estimated market price range - modelled values for guidance only, not live distributor offers.

FN9260B-4-06 Features

  • IEC 320-C14 inlet with integrated EMI filter.
  • Rated for 4A continuous current at 250VAC.
  • Panel mount with flange and quick connect terminals.
  • Twin fuse holder accommodates two 5x20mm fuses.
  • Approvals: CQC, CSA, ENEC, UL; flammability UL94 V-2.

FN9260B-4-06 Applications

  • Medical equipment requiring low leakage current.
  • Commercial power supplies and instrumentation.
  • Industrial control cabinets needing EMI filtering.
  • Test and measurement equipment with IEC inlets.

FN9260B-4-06 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the FN9260B-4-06?

The current rating is 4A.

What is the voltage rating for this power entry module?

The maximum continuous operating voltage is 250 VAC.

What mounting type does the FN9260B-4-06 use?

It uses panel mount with flange.

How many positions does the connector have?

The connector has 3 positions (IEC 320-C14).

Does the FN9260B-4-06 include fuses?

It includes a twin fuse holder, but fuses are not included.

What is the operating temperature range?

The temperature range is -25°C to +85°C.

What safety approvals does the FN9260B-4-06 have?

It is approved by CQC, CSA, ENEC, and UL.
