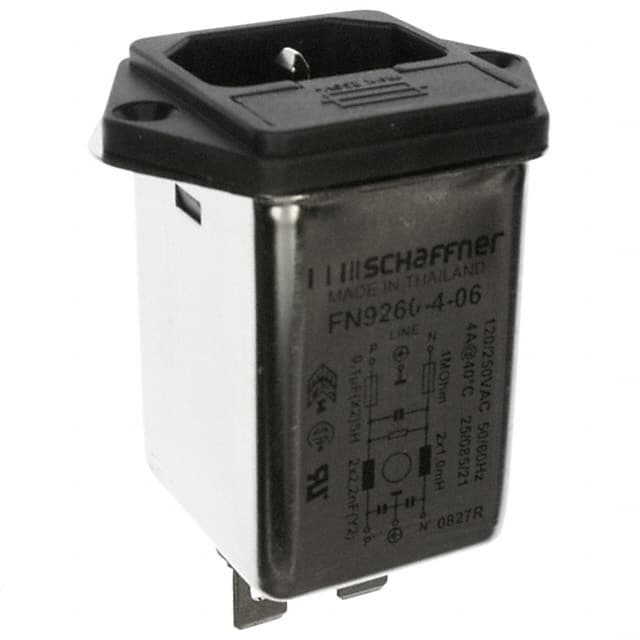

FN9260-4-06 Power entry module with IEC320-C14 inlet, EMI filter, and twin fuse holder. Rated 4A at 250VAC, panel mount with quick connect terminals.
Mfr Part #:

FN9260-4-06

Available from 2 distributors
Mfr Name: Schaffner
Schaffner
Power entry module with IEC320-C14 inlet, EMI filter, and twin fuse holder. Rated 4A at 250VAC, panel mount with quick connect terminals.
✓ Total Stock: 11 pcs
$ Price Range: $12.28 - $17.70

FN9260-4-06 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
On Request
On Request
On Request On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FN9260-4-06 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accomodates a Fuse
Approval Agency
Capacitance
Connector Style
Connector Type
Current Rating
Filter Type
Fuse Holder, Drawer
Inductance
Ingress Protection
Material Flammability Rating
Medical Grade
Mounting Type
Number of Positions
Operating Temperature Range
Panel Cutout Dimensions
Resistance
Termination
Termination Style
Weight
View Similar Products (0)

FN9260-4-06 Description

Short technical summary and product information.

This Schaffner FN9260-4-06 is a power entry module combining an IEC 320-C14 receptacle, EMI filter, and twin fuse holder in a compact panel-mount housing. Electrical ratings: 4A continuous current, 250 VAC voltage, operating frequency DC to 400 Hz. The filter provides 0.31 mA leakage current, 1.0 mH inductance, 0.1 µF X-capacitor, and 2.2 nF Y-capacitor. Termination is via quick connect 0.250" tabs. Panel cutout: rectangular 29x33mm. Ingress protection IP40. Flammability UL94 V-2. Operating temperature -25°C to +85°C. Approved by CQC, CSA, ENEC, UL. The module accommodates two 5x20mm fuses (not included). This module is suitable for general-purpose power supply filtering applications.

FN9260-4-06 Quick Information

Product Type: Power Entry Module
Series: FN9260
Canonical Name: FN9260-4-06 Power Entry Module with EMI Filter, IEC320-C14, Panel Mount
Subcategory: Filtered Power Entry Module

FN9260-4-06 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FN9260-4-06 Estimated Pricing

Qty Low High
1+ $17.70 $17.70
10+ $15.70 $15.70
25+ $14.54 $14.54
60+ $13.89 $13.89
120+ $13.16 $13.16
300+ $12.70 $12.70
540+ $12.28 $12.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

FN9260-4-06 Features

  • IEC 320-C14 panel mount inlet with EMI filter.
  • Rated 4A at 250VAC continuous operation.
  • Integrated twin fuse holder for 5x20mm fuses.
  • Quick connect 0.250" termination for easy wiring.
  • IP40 rated for basic dust protection.

FN9260-4-06 Applications

  • Ideal for power supply input filtering.
  • Use in industrial equipment requiring EMI suppression.
  • Suitable for general-purpose electronic equipment.
  • Used in test and measurement instruments.

FN9260-4-06 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the FN9260-4-06?

4 amperes.

What is the voltage rating?

250 VAC.

What mounting style does it use?

Panel mount with flange.

How many positions does the connector have?

3 positions.

Does it include a fuse?

Yes, it accommodates two 5x20mm fuses (not included).

What approvals does it have?

CQC, CSA, ENEC, UL.

What is the operating temperature range?

-25°C to +85°C.
