| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Termination Style | |
| Voltage |

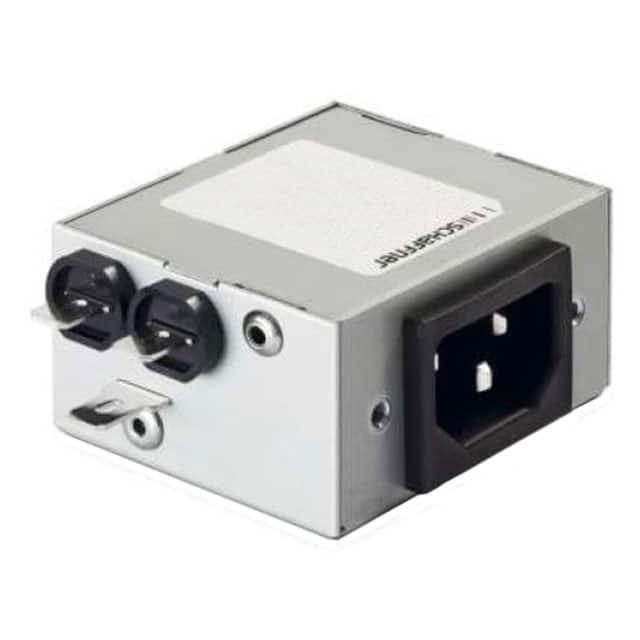

The Schaffner FN9246-10-06 is a single phase power line filter designed for EMI suppression in lighting applications. It operates at a rated voltage of 250VAC and a current of 10A, with an inductance of 3mH. The filter supports a frequency range from DC to 400Hz, making it suitable for both AC and DC power lines.
The filter is housed in a chassis mount package with quick connect termination for easy installation. It is approved by CSA, SEMKO, and UR, ensuring compliance with major safety standards. The operating temperature range is -25°C to 85°C, accommodating a variety of environments.
This component is well-suited for lighting systems where reliable EMI filtering is required. The single stage configuration provides effective attenuation for common mode and differential mode noise.
| Qty | Low | High |
|---|---|---|
| 1+ | $32.86 | $32.86 |
| 10+ | $26.81 | $26.81 |
| 25+ | $24.73 | $24.73 |
| 60+ | $22.89 | $22.89 |
| 120+ | $21.53 | $21.53 |
| 300+ | $20.01 | $20.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is rated for 250VAC.
The current rating is 10A.
The operating temperature range is -25°C to 85°C.
It is marked as RoHS3 compliant, but this status is unverified.
It is chassis mount with quick connect terminals.
It is approved by CSA, SEMKO, and UR.
