FN9222SR-6-06

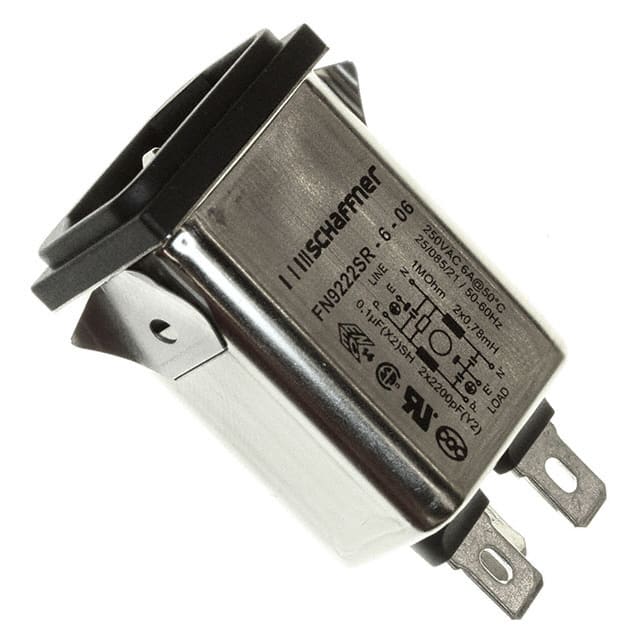

The Schaffner FN9222SR-6-06 is a filtered power entry module that combines an IEC 320-C14 inlet with an EMI/RFI filter in a compact panel-mount package. It is designed for commercial applications requiring conducted interference suppression. The module is rated for a continuous operating voltage of 250 VAC at 50/60 Hz and accepts currents up to 6 A across a frequency range of DC to 400 Hz. It includes a bleed resistor for safety discharge.\n\nThe connector style is IEC 320-C14, configured as a receptacle with male blades. The three-position connector uses quick connect terminals sized 0.250 inch (6.3 mm). The housing is panel mounted via a snap-in mechanism that fits rectangular cutouts of 29.40 mm by 20.80 mm, accommodating panel thicknesses from 0.028 to 0.059 inches. The plastic material carries a UL94 V-2 flammability rating. Ingress protection is rated IP40.\n\nThis component is suitable for equipment that requires a filtered AC inlet with a simple snap-in installation. The operating temperature range is -25°C to +85°C. The high potential test voltage between line and ground is 2000 VAC for 2 seconds. The mean time between failures (MTBF) exceeds 3,040,000 hours at 50°C and 230 V. The module holds safety approvals from CQC, CSA, ENEC, and UL. No fuse accommodation is provided.
