| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58 pcs
|
58 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Storage Temperature | |
| Termination | |
| Termination Style |

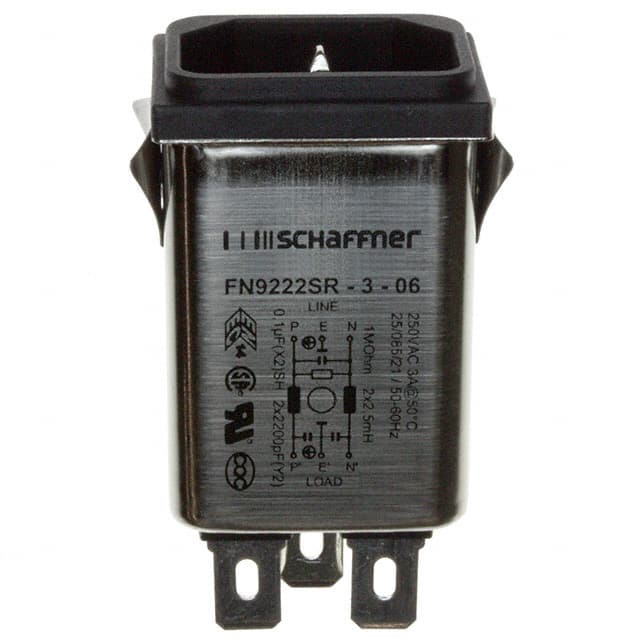

The Schaffner FN9222SR-3-06 is a filtered IEC 320-C14 power entry module designed for commercial applications. It integrates a standard IEC inlet with an EMI/RFI filter to help suppress conducted interference. The connector is a male blade receptacle with 3 positions, rated for 3A continuous current at 250VAC maximum operating voltage. The module is panel mounted using a snap-in mechanism and terminates with 0.250-inch quick connect tabs. Operating frequency range is DC to 400 Hz, with dielectric strength of 2000 VAC from line to ground. The operating temperature range is -25°C to +85°C, and the enclosure provides IP40 protection. The module includes a bleed resistor for safety discharge. Approvals include CQC, CSA, ENEC, and UL. The flammability rating is specified as UL94 V-2 in the database, though the datasheet indicates UL94 V-0 for plastic material. Typical applications include commercial power supplies, test equipment, and industrial electronics where EMI filtering is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.68 | $7.68 |
| 10+ | $6.53 | $6.53 |
| 25+ | $6.12 | $6.12 |
| 50+ | $5.83 | $5.83 |
| 120+ | $5.48 | $5.48 |
| 240+ | $5.06 | $5.06 |
| 600+ | $4.88 | $4.88 |
| 1,080+ | $4.68 | $4.68 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 A.
Nominal 230 VAC, maximum continuous operating 250 VAC.
Panel mount, snap-in.
3 positions.
-25°C to +85°C.
