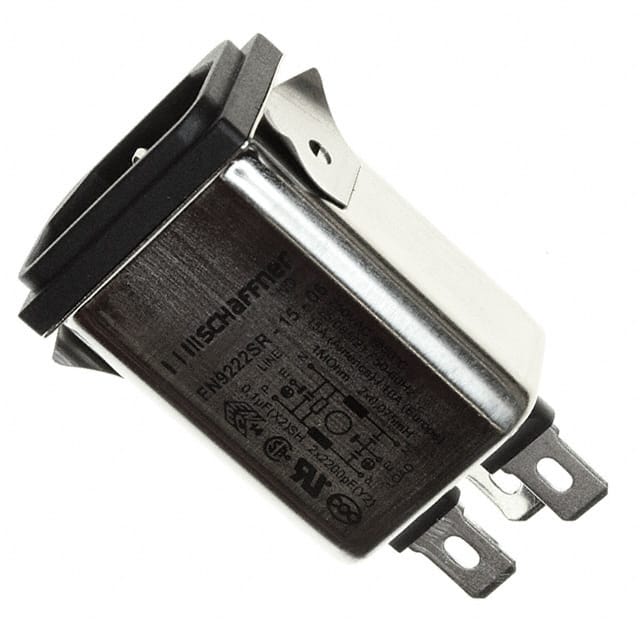

FN9222SR-15-06 IEC 320-C14 filtered power entry module rated at 15A and 250VAC. Panel mount with snap-in installation and 0.250" quick connect terminals.
Mfr Part #:

FN9222SR-15-06

Available from 1 distributors
Mfr Name: Schaffner
Schaffner
IEC 320-C14 filtered power entry module rated at 15A and 250VAC. Panel mount with snap-in installation and 0.250" quick connect terminals.
✓ Total Stock: 972 pcs
$ Price Range: $5.18 - $8.49

FN9222SR-15-06 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
972 pcs
On Request
972 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FN9222SR-15-06 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accomodates a Fuse
Approval Agency
Connector Style
Connector Type
Current Rating
Features
Filter Type
Ingress Protection
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature Range
Panel Cutout Dimensions
Panel Thickness
Tape & Reel
Termination
Termination Style
View Similar Products (0)

FN9222SR-15-06 Description

Short technical summary and product information.

The Schaffner FN9222SR-15-06 is an IEC 320-C14 filtered power entry module combining an IEC inlet and EMI/RFI filter in a compact panel-mount package. It is rated for 15A continuous current at 250VAC, 50/60Hz.



The module provides excellent conducted attenuation performance for commercial applications. Electrical specifications include 12 mH inductance, 0.1 µF capacitance, and typical leakage current of 0.31 mA at 250VAC/50Hz. High-pot testing is 2000VAC from line to ground and 1000VAC line to neutral.



Mechanical features include panel mount with snap-in retention, rectangular cutout 29.40mm x 20.80mm, and quick connect terminals (0.250" / 6.3mm). The housing has UL94 V-2 flammability rating and IP40 protection. Operating temperature range is -25°C to +85°C.



This component is suitable for use in power supplies, industrial equipment, and other applications requiring filtered AC input. It carries approvals from CQC, CSA, ENEC, and UL. The part includes a bleed resistor feature.

FN9222SR-15-06 Quick Information

Product Type: Power Entry Module (PEM)
Series: FN9222
Canonical Name: IEC 320-C14 Power Entry Module with EMI Filter, 15A, Panel Mount, Quick Connect
Subcategory: Filtered Power Entry Modules

FN9222SR-15-06 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FN9222SR-15-06 Estimated Pricing

Qty Low High
1+ $8.49 $8.49
10+ $7.22 $7.22
25+ $6.77 $6.77
50+ $6.45 $6.45
120+ $6.06 $6.06
240+ $5.60 $5.60
600+ $5.40 $5.40
1,080+ $5.18 $5.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

FN9222SR-15-06 Features

  • IEC 320-C14 filtered power entry module.
  • Rated for 15A continuous current at 250VAC.
  • Panel mount with snap-in installation.
  • Quick connect terminals for easy wiring.
  • Includes bleed resistor for safety.

FN9222SR-15-06 Applications

  • Used in power supply input filtering circuits.
  • Suitable for industrial control equipment.
  • Ideal for commercial electronic devices requiring EMI filtering.

FN9222SR-15-06 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this connector have?

3 positions.

What is the current rating?

15 A.

What is the voltage rating?

250 VAC.

What is the mounting type?

Panel Mount, Snap-In.

What is the operating temperature range?

-25°C to +85°C.

What approvals does this part have?

CQC, CSA, ENEC, UL.

What is the filter type?

Filtered (EMI, RFI) - Commercial.
