| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Termination |

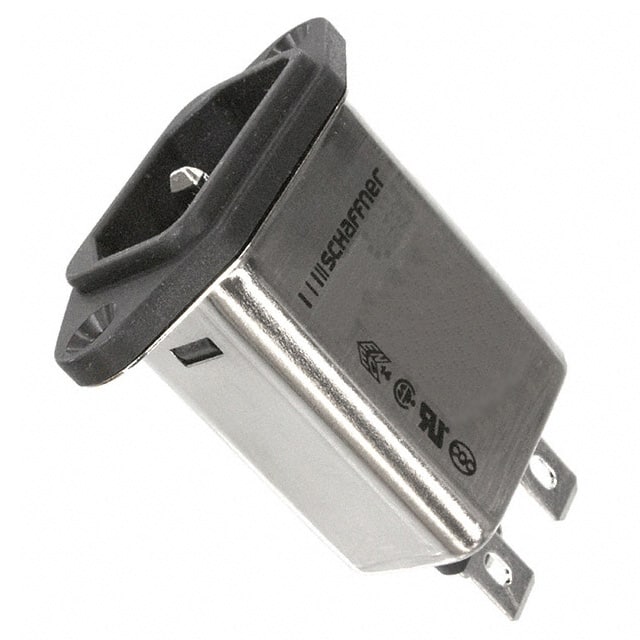

The Schaffner FN9222R-6-06 is a filtered IEC 320-C14 power entry module designed for commercial applications requiring conducted EMI suppression. It combines an IEC inlet and a mains filter in a compact panel-mount package.
Rated for 6A continuous current at 250 VAC (50/60 Hz), this module operates from DC to 400 Hz and provides a dielectric strength of 2000 VAC between line and protective earth. The operating temperature range is -25°C to +85°C, with an MTBF greater than 3,040,000 hours at 50°C/230V.
Mechanical features include a rectangular panel cutout of 28.50mm x 21.50mm, flange mounting, and quick connect terminals (0.250" / 6.3mm). The enclosure is rated IP40 and the plastic material meets UL94 V-0 flammability. The module includes a bleed resistor and supports front or rear side mounting.
Approved by CQC, CSA, ENEC, and UL, this part is suitable for power supplies, industrial equipment, and IT applications where space and EMI compliance are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.00 | $7.00 |
| 10+ | $5.96 | $5.96 |
| 25+ | $5.58 | $5.58 |
| 50+ | $5.32 | $5.32 |
| 120+ | $5.00 | $5.00 |
| 240+ | $4.62 | $4.62 |
| 600+ | $4.45 | $4.45 |
| 2,520+ | $4.30 | $4.30 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 6A.
The maximum operating voltage is 250 VAC, with a nominal operating voltage of 230 VAC.
It uses an IEC 320-C14 receptacle with male blades (3 positions).
Panel mount with flange, requiring a rectangular cutout of 28.50mm x 21.50mm.
The operating temperature range is -25°C to +85°C.
Yes, it includes a commercial-grade EMI/RFI filter.
It is approved by CQC, CSA, ENEC, and UL.
