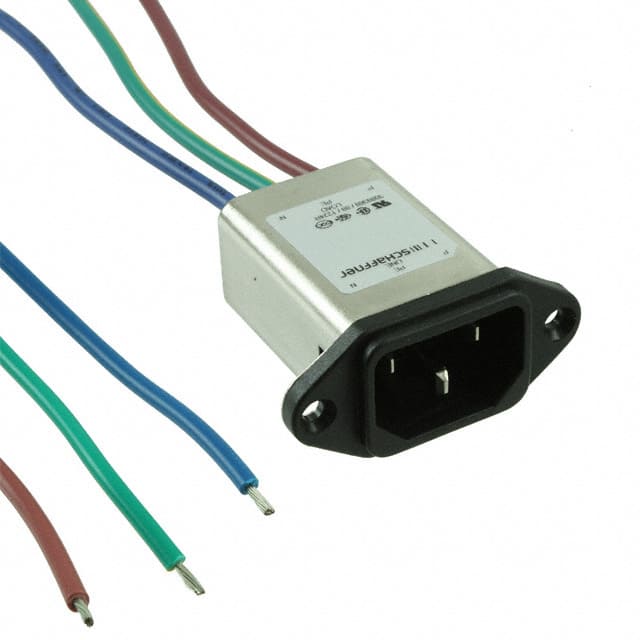

FN9222-1-07 Schaffner FN9222-1-07 is a filtered IEC 320-C14 power entry module rated for 1A at 250VAC, featuring panel mount with flange and wire leads termination.
Mfr Part #:

FN9222-1-07

Available from 1 distributors
Mfr Name: Schaffner
Schaffner
Schaffner FN9222-1-07 is a filtered IEC 320-C14 power entry module rated for 1A at 250VAC, featuring panel mount with flange and wire leads termination.
✓ Total Stock: 40 pcs
$ Price Range: $6.25 - $10.00

FN9222-1-07 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
40 pcs
On Request
40 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FN9222-1-07 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accomodates a Fuse
Approval Agency
Connector Style
Connector Type
Current Rating
Features
Filter Type
Inductance
Ingress Protection
Material Flammability Rating
Mounting Type
Number of Positions
Operating Temperature Range
Panel Cutout Dimensions
Storage Temperature
Termination
Termination Style
View Similar Products (0)

FN9222-1-07 Description

Short technical summary and product information.

The Schaffner FN9222-1-07 is a filtered IEC 320-C14 power entry module (PEM) designed for EMI/RFI suppression in commercial applications. It combines an IEC inlet with a mains filter in a compact panel-mount package.



Electrical specifications include a maximum continuous operating voltage of 250 VAC at 50/60 Hz, a current rating of 1 A, and an operating frequency range from DC to 400 Hz. The filter provides high conducted attenuation with inductance of 12 mH and capacitance of 0.1 µF.



The module is panel mounted with a flange and features wire leads for termination. The panel cutout is rectangular 28.50mm x 21.50mm. It is rated IP40 and has a flammability rating of UL94 V-2. Operating temperature range is -25°C to +85°C.



This component is suitable for use in equipment requiring IEC 320-C14 connectors with integrated EMI filtering, such as power supplies, medical devices (non-medical version), and industrial controls. It is approved by CQC, CSA, ENEC, and UL.

FN9222-1-07 Quick Information

Product Type: Power Entry Module (PEM)
Series: FN9222
Canonical Name: Schaffner FN9222-1-07 IEC 320-C14 Power Entry Module, Filtered, 1A, 250VAC, Panel Mount, Wire Leads
Subcategory: Filtered IEC Inlet

FN9222-1-07 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FN9222-1-07 Estimated Pricing

Qty Low High
1+ $10.00 $10.00
10+ $8.50 $8.50
25+ $7.97 $7.97
50+ $7.59 $7.59
120+ $7.13 $7.13
240+ $6.59 $6.59
600+ $6.36 $6.36
1,080+ $6.25 $6.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

FN9222-1-07 Features

  • Integrated EMI/RFI filter for commercial applications.
  • Rated for 1A at 250VAC continuous operation.
  • Panel mount with flange and wire leads termination.
  • IP40 rated protection against solid objects.
  • Approved by CQC, CSA, ENEC, and UL.

FN9222-1-07 Applications

  • Used in power supply input filtering circuits.
  • Suitable for industrial control equipment.
  • Ideal for medical equipment (non-medical version).
  • Integrates into compact enclosure designs.

FN9222-1-07 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector style of the FN9222-1-07?

IEC 320-C14.

How many positions does it have?

3 positions.

What is the current rating?

1 A.

What is the voltage rating?

250 VAC, 50/60 Hz.

What is the mounting type?

Panel mount, flange.

Does it have an EMI filter?

Yes, it is a filtered (EMI, RFI) commercial type.

What is the operating temperature range?

-25°C to +85°C.
