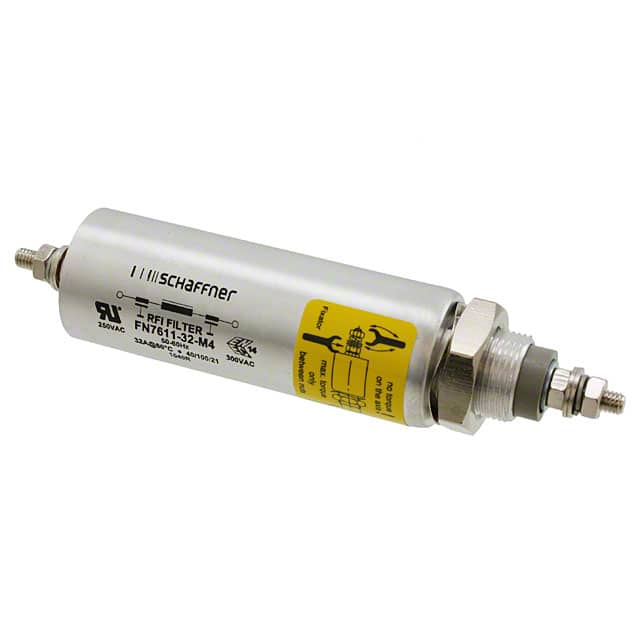

The Schaffner FN7611-32-M4 is an AC feedthrough filter from the FN761X series, designed for EMI suppression in power line applications. It is rated for a maximum continuous operating voltage of 300 VAC (ENEC) or 250 VAC (UL) at 50/60 Hz, and up to 1000 VDC. The filter handles a rated current of 32 A at 60°C and operates over a frequency range from DC to 60 Hz.
This feedthrough filter incorporates a LC Pi network with a typical capacitance of 22 nF and inductance of 70 nH, providing effective high-frequency noise attenuation. The DC resistance is a low 0.65 mΩ, minimizing power loss. It is designed for through-bulkhead mounting with axial threaded terminals, ensuring a secure and reliable connection.
The filter is built with a self-healing dielectric and offers a high potential test voltage of 3000 VDC for 2 seconds. It meets flammability rating UL 94 V-0 and uses a Class Y2 capacitor. The operating and storage temperature range is -40°C to +100°C. The component weighs 80 g and has a body diameter of 25.00 mm and length of 83.00 mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $193.17 | $193.17 |
| 10+ | $176.40 | $176.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 32 A at 60°C.
Maximum continuous operating voltage is 300 VAC (ENEC) or 250 VAC (UL) at 50/60 Hz, and up to 1000 VDC.
The operating and storage temperature range is -40°C to +100°C.
The package is Axial - Threaded Terminals with bolt mount.
The DC resistance is 0.65 mΩ at 25°C.
Typical capacitance is 22 nF and typical inductance is 70 nH.
The high potential test voltage is 3000 VDC for 2 seconds.
