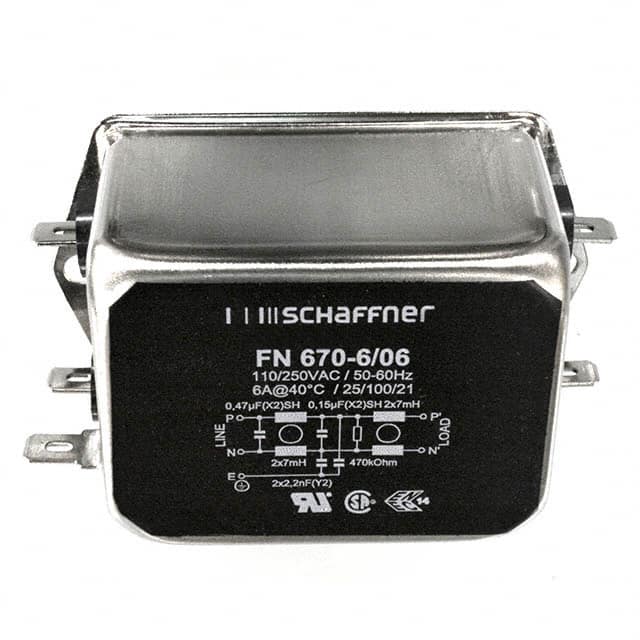

The Schaffner FN670-6-06 is a two-stage power line filter designed for single-phase applications. It is rated for a continuous current of 6A at a maximum operating voltage of 250VAC, with an operating frequency range from DC to 400Hz. The filter provides high differential and common mode attenuation, making it suitable for general purpose EMI filtering in various electronic equipment.
The filter features a chassis mount design with quick connect terminations, facilitating easy installation. It has an inductance of 7mH and a maximum leakage current of 250µA per phase at 50/60Hz. The filter is approved by CSA, ENEC, and UR, ensuring compliance with international safety standards.
With a typical MTBF of 300,000 hours at 40°C and 230V, the FN670-6-06 offers reliable long-term performance. The filter weighs approximately 140g and is designed for robust operation in industrial and commercial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $31.90 | $31.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The FN670-6-06 is rated for 6A at 40°C.
The maximum operating voltage is 250VAC.
The FN670-6-06 is chassis mounted.
It is approved by CSA, ENEC, and UR.
The maximum leakage current is 250µA per phase at 50/60Hz.
The operating frequency range is DC to 400Hz.
