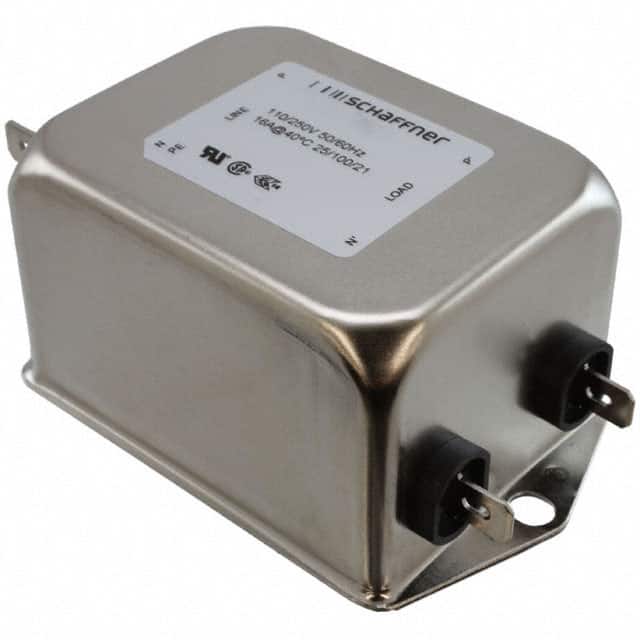

FN660-16-06 The Schaffner FN660-16-06 is a two-stage general-purpose power line filter rated for 16 A at 250 VAC. It features chassis mount with quick connect terminals and operates from DC to 400 Hz.
Mfr Part #:

FN660-16-06

Available from 1 distributors
Mfr Name: Schaffner
Schaffner
The Schaffner FN660-16-06 is a two-stage general-purpose power line filter rated for 16 A at 250 VAC. It features chassis mount with quick connect terminals and operates from DC to 400 Hz.
✓ Total Stock: 3 pcs

FN660-16-06 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FN660-16-06 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Configuration
Current
Filter Type
Frequency
Inductance
Lead Style
Medical Grade
Mounting Type
Operating Temperature
Termination Style
Voltage
View Similar Products (0)

FN660-16-06 Description

Short technical summary and product information.

The Schaffner FN660-16-06 is a two-stage general-purpose power line filter designed for single-phase applications. It is rated for a continuous current of 16 A at 250 VAC and operates over a frequency range from DC to 400 Hz. The filter provides high differential and common mode attenuation, making it suitable for reducing electromagnetic interference in a variety of electronic systems.



The filter is chassis mounted and uses quick connect terminals for easy installation. It has an inductance of 440 µH and a maximum leakage current of 250 µA per phase at 50/60 Hz. The operating temperature range is -25°C to 100°C, and it is approved by CSA, ENEC, and UR agencies.



With an MTBF of 350,000 hours at 40°C and 230V per Mil-HB-217F, this filter offers reliable long-term performance. It is RoHS3 compliant and has an MSL of 1 (unlimited). The filter is ideal for general purpose EMI filtering in industrial and commercial equipment.

FN660-16-06 Quick Information

Product Type: Power Line Filter Module
Series: FN660
Canonical Name: Schaffner FN660-16-06 Two-Stage Power Line Filter
Subcategory: Two-Stage General Purpose Filter

FN660-16-06 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FN660-16-06 Features

  • Two-stage single-phase power line filter.
  • Rated for 16 A at 250 VAC.
  • Chassis mount with quick connect terminals.
  • 440 µH inductance for effective filtering.
  • CSA, ENEC, UR agency approvals.

FN660-16-06 Applications

  • General purpose EMI filtering in industrial equipment.
  • Reducing conducted emissions in power supplies.
  • Suitable for single-phase AC line applications.
  • Used in commercial and light industrial systems.

FN660-16-06 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated current of the Schaffner FN660-16-06?

The rated current is 16 A.

What is the operating voltage range for this filter?

The rated voltage is 250 VAC.

What is the operating temperature range?

The operating temperature range is -25°C to 100°C.

Is the FN660-16-06 RoHS compliant?

Yes, it is listed as RoHS3 compliant, though this is unverified.

What mounting style does this filter use?

It uses chassis mount with quick connect terminals.

What is the leakage current of this filter?

The maximum leakage current is 250 µA per phase at 50/60 Hz.

What approvals does the FN660-16-06 have?

It is approved by CSA, ENEC, and UR.
