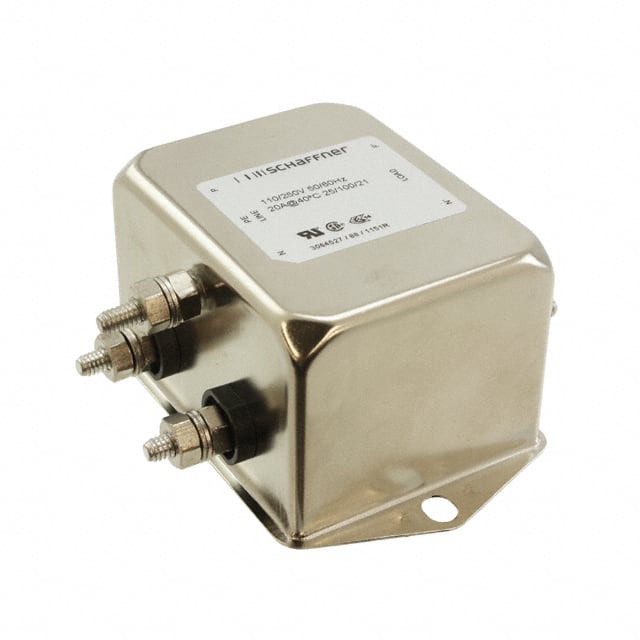

The Schaffner FN612-20-10 is a single-phase, single-stage power line filter designed for general purpose EMI filtering. It operates at a maximum continuous voltage of 250VAC and a rated current of 20A at 40°C. The filter provides good differential-mode attenuation with an inductance of 480µH and capacitance values of 100nF (Cx) and 2.2nF (Cy). Leakage current is 190µA at 230VAC/50Hz. The filter meets high potential test requirements of 2000VAC from line to earth and 760VAC from line to neutral for 2 seconds. It is designed to comply with UL 1283, CSA 22.2 No. 8 1986, and IEC/EN 60939 standards, and carries approvals from CSA, ENEC, and UR. The operating temperature range is -25°C to 100°C. The device is chassis mounted with 8-32 threaded post terminals and weighs 290g. Typical applications include electrical and electronic equipment, consumer goods, household equipment, industrial equipment, medical equipment, office automation, and datacom equipment.
| Qty | Low | High |
|---|---|---|
| 2+ | $36.60 | $36.60 |
| 12+ | $35.13 | $35.13 |
| 48+ | $33.73 | $33.73 |
| 130+ | $32.37 | $32.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 250VAC and the rated current is 20A at 40°C.
The operating temperature range is -25°C to 100°C.
The filter has approvals from CSA, ENEC, and UR.
Leakage current is 190µA at 230VAC/50Hz.
The inductance is 480µH.
The part is reported as RoHS3 compliant, but this is unverified and should be confirmed with the manufacturer.
