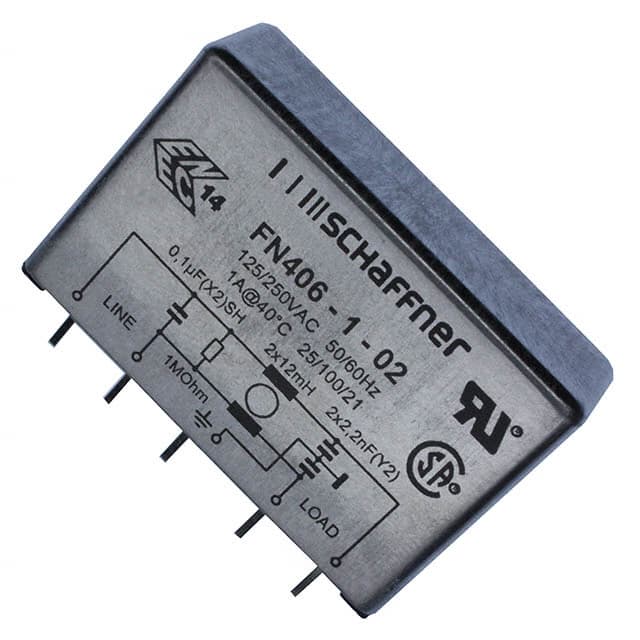

The Schaffner FN406-1-02 is a single-phase, single-stage EMC filter designed for PCB mounting. It is rated for 250 VAC continuous operating voltage and 1 A current at 40°C (1.2 A at 25°C). The filter operates over DC to 400 Hz and has a temperature range of -25°C to 100°C.
Key electrical specifications include an inductance of 12 mH (-30/+50% tolerance), capacitance Cx of 100 nF (±20%), Cy of 2.2 nF (±20%), and a resistor of 1000 kΩ (±10%). Maximum leakage current is 373 µA at 230 VAC/50 Hz. High potential test voltage between line and ground is 2000 VAC for 2 seconds.
The filter is housed in an aluminum case with through hole mounting and PC pin terminations. It weighs 36 g. The design complies with UL 94 V-0 flammability rating and is approved by CSA, ENEC, and UR. MTBF is greater than 1,900,000 hours at 40°C/230 V.
Typical applications include electrical and electronic equipment, single-phase power supplies, switch-mode power supplies, test and measurement equipment, and medical equipment. RoHS compliance is unverified but assumed.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.76 | $15.76 |
| 10+ | $13.19 | $13.19 |
| 100+ | $12.53 | $12.53 |
| 250+ | $10.86 | $10.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
250 VAC.
-25°C to 100°C.
Through hole with PC pins.
RoHS status is listed as RoHS3 compliant but has not been verified.
373 µA maximum at 230 VAC/50 Hz.
CSA, ENEC, UR.
2000 VAC between line and ground for 2 seconds.
