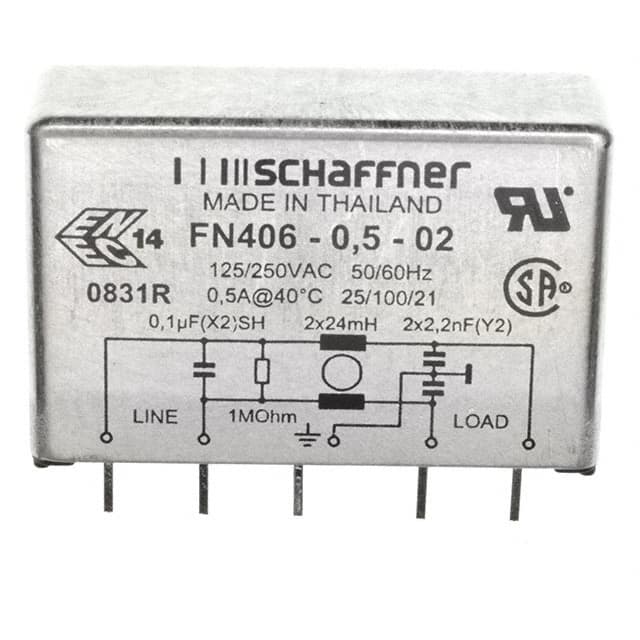

The Schaffner FN406-0.5-02 is a single phase EMC filter designed for PCB mounting. It operates at a maximum continuous voltage of 250VAC and a rated current of 500mA at 40°C. The filter provides an inductance of 24mH and capacitance values of 100nF (Cx) and 2.2nF (Cy), with a typical leakage current of 373µA at 230VAC/50Hz.
The filter is housed in an aluminium case and features through hole termination with PC pins. It is designed to meet UL 1283, CSA 22.2 No. 8, and IEC/EN 60939 standards. The operating temperature range is -25°C to +100°C, and the flammability rating is UL 94 V-0.
Typical applications include electrical and electronic equipment, small to medium-sized machines, household equipment, single-phase power supplies, switch-mode power supplies, and test and measurement equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.46 | $16.46 |
| 10+ | $12.65 | $12.65 |
| 25+ | $12.57 | $12.57 |
| 50+ | $11.71 | $11.71 |
| 100+ | $10.26 | $10.26 |
| 250+ | $9.79 | $9.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous operating voltage is 250VAC, with a nominal operating voltage of 230VAC.
The rated current is 500mA at 40°C.
The operating temperature range is -25°C to +100°C.
The part is listed as RoHS3 compliant, but this is unverified.
The inductance is 24mH.
The typical leakage current is 373µA at 230VAC/50Hz.
It uses through hole mounting with PC pin termination.
