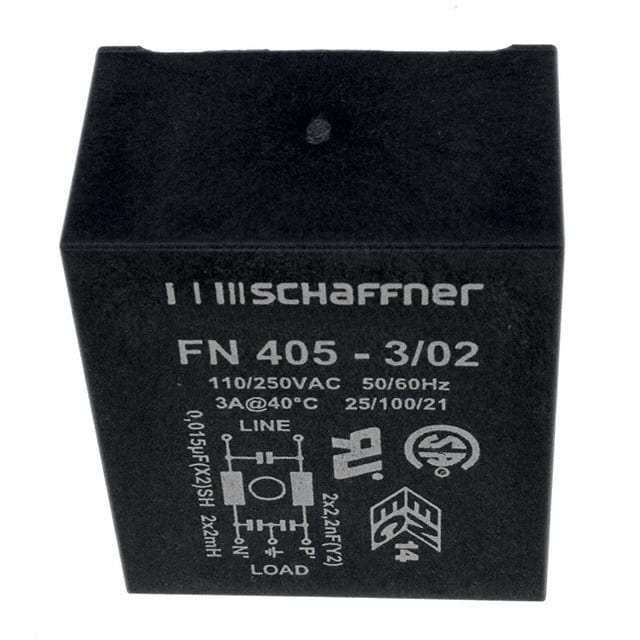

FN405-3-02 Schaffner FN405-3-02 is a single-phase power line filter rated for 3A at 250VAC. It features through hole mounting and meets UL 1283 and CSA 22.2 standards.
Mfr Part #:

FN405-3-02

Available from 1 distributors
Mfr Name: Schaffner
Schaffner
Schaffner FN405-3-02 is a single-phase power line filter rated for 3A at 250VAC. It features through hole mounting and meets UL 1283 and CSA 22.2 standards.
✓ Total Stock: 1 pcs
$ Price Range: $9.13 - $16.22

FN405-3-02 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FN405-3-02 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Applications
Approval Agency
Automotive Grade
Configuration
Current
Filter Type
Frequency
Inductance
Industrial Grade
Lead Style
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Resistance
Storage Temperature
Termination Style
Voltage
Weight
View Similar Products (0)

FN405-3-02 Description

Short technical summary and product information.

The Schaffner FN405-3-02 is a single-phase EMI filter designed for PCB mounting. It is part of the FN405 series and provides conducted attenuation for power line applications. Rated current is 3 A at 40°C with maximum continuous voltage of 250 VAC.



Electrical specifications include inductance of 2 mH, capacitance Cx 15 nF, Cy 2.2 nF, and resistance 2.2 kΩ. Maximum leakage current at 230VAC/50Hz is 373 µA. High pot test voltage is 2000 VAC from phase to ground and 760 VAC phase to neutral. Operating frequency range is DC to 400 Hz.



The filter is designed for through hole mounting with PC pin terminations. Flammability rating is UL 94V-0. Operating temperature range is -25°C to 100°C. Weight is 40 g. Typical applications include electrical and electronic equipment, small to medium-sized machines, household equipment, single-phase power supplies, and test measurement equipment.

FN405-3-02 Quick Information

Product Type: Power Line Filter Module
Series: FN 405
Canonical Name: Schaffner FN405-3-02 Power Line Filter Module
Subcategory: Single Phase EMI Filter

FN405-3-02 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FN405-3-02 Estimated Pricing

Qty Low High
1+ $16.22 $16.22
10+ $13.24 $13.24
25+ $12.21 $12.21
50+ $11.48 $11.48
100+ $10.80 $10.80
250+ $9.96 $9.96
500+ $9.37 $9.37
1,000+ $9.13 $9.13

Estimated market price range - modelled values for guidance only, not live distributor offers.

FN405-3-02 Features

  • Single-phase EMI filter rated 3A at 250VAC.
  • Through hole mounting with PC pin termination.
  • Inductance of 2 mH with 15 nF/2.2 nF capacitors.
  • Leakage current 373 µA maximum at 230VAC.
  • Operating temperature range -25°C to 100°C.

FN405-3-02 Applications

  • Electrical and electronic equipment.
  • Small to medium-sized machines and household equipment.
  • Single-phase power supplies and switch-mode supplies.
  • Test and measurement equipment.

FN405-3-02 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated current of the FN405-3-02?

3 A at 40°C.

What is the continuous operating voltage?

250 VAC.

What is the operating temperature range?

-25°C to 100°C.

What is the mounting type?

Through hole with PC pins.

What is the leakage current?

373 µA maximum at 230VAC/50Hz.

What agency approvals does the FN405-3-02 have?

CSA, ENEC, UR, UL, IEC/EN 60939.

Is the FN405-3-02 RoHS compliant?

RoHS3 Compliant (unverified).
