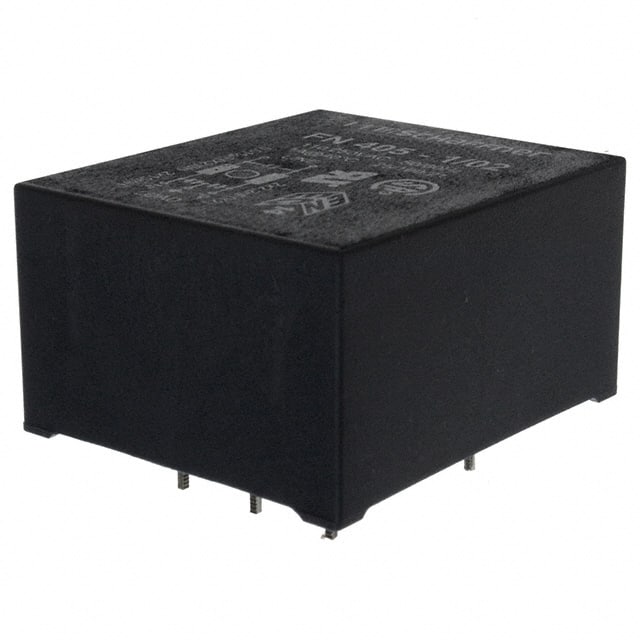

The Schaffner FN405-1-02 is a single-phase, single-stage EMI power line filter designed for PCB mounting. It is rated for a maximum continuous operating voltage of 250VAC and a rated current of 1A at 40°C (1.2A at 25°C). The filter provides an inductance of 10 mH and includes 15 nF across-line (Cx) and 2.2 nF line-to-ground (Cy) capacitors, with a 2.2 kΩ discharge resistor.
It offers a maximum leakage current of 373 µA at 230VAC/50Hz and withstands high-pot testing of 2000VAC from line to ground and 760VAC line to neutral. The operating frequency range is DC to 400Hz, and the operating temperature range is -25°C to +100°C.
The filter is housed in a through-hole package with PC pin terminations, weighs 40 grams, and has a flammability rating of UL 94V-0. It is approved to CSA, ENEC, and UR standards, with a typical MTBF of 1,600,000 hours at 40°C/230V per Mil-HB-217F.
| Qty | Low | High |
|---|---|---|
| 1+ | $14.97 | $14.97 |
| 10+ | $12.22 | $12.22 |
| 25+ | $11.69 | $11.69 |
| 250+ | $10.32 | $10.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 1 A at 40°C, with a maximum of 1.2 A at 25°C.
The maximum continuous operating voltage is 250 VAC, and the operating frequency range is DC to 400 Hz.
The operating temperature range is -25°C to +100°C.
The RoHS status is listed as RoHS3 Compliant, but this is unverified and should be confirmed with the manufacturer.
The maximum leakage current is 373 µA at 230 VAC, 50 Hz under normal operating conditions.
It is approved by CSA, ENEC, and UR.
The mounting type is Through Hole, and the termination style is PC Pins.
