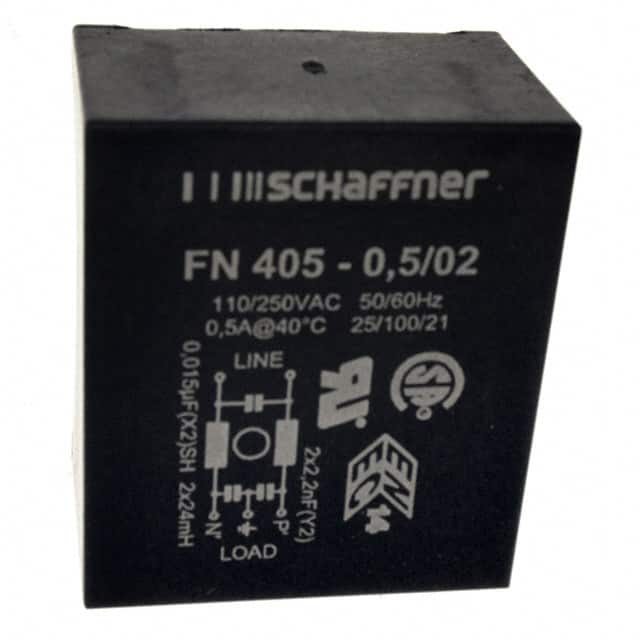

FN405-0.5-02 The Schaffner FN405-0.5-02 is a single phase EMI power line filter rated at 0.5A and 250VAC. It features a compact through-hole PCB mount design with 24mH inductance and 373µA leakage current.
Mfr Part #:

FN405-0.5-02

Available from 1 distributors
Mfr Name: Schaffner
Schaffner
The Schaffner FN405-0.5-02 is a single phase EMI power line filter rated at 0.5A and 250VAC. It features a compact through-hole PCB mount design with 24mH inductance and 373µA leakage current.
✓ Total Stock: 25 pcs
$ Price Range: $10.22 - $15.32

FN405-0.5-02 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FN405-0.5-02 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Configuration
Current
Filter Type
Frequency
Inductance
Mounting Type
Operating Temperature
Termination Style
Voltage
Weight
View Similar Products (0)

FN405-0.5-02 Description

Short technical summary and product information.

The Schaffner FN405-0.5-02 is a single-phase EMI filter designed for PCB mounting. It is rated for 0.5A continuous current at 40°C (0.6A at 25°C) and a maximum operating voltage of 250VAC. The filter operates from DC to 400Hz and provides 24mH inductance with 15nF Cx and 2.2nF Cy capacitors. Maximum leakage current is 373µA at 230VAC/50Hz. High potential test voltages are 2000VAC from line to ground and 760VAC line to neutral, each for 2 seconds. The filter has an MTBF of 1,600,000 hours at 40°C/230V per Mil-HB-217F. Operating temperature range is -25°C to 100°C. The housing meets UL 94V-0 flammability rating. Approvals include CSA, ENEC, UR, UL 1283, and IEC/EN 60939. Typical applications include electrical and electronic equipment, small to medium-sized machines, single-phase power supplies, and test equipment.

FN405-0.5-02 Quick Information

Product Type: Power Line Filter Module
Series: FN405
Canonical Name: Schaffner FN405-0.5-02 Single Phase Power Line Filter
Subcategory: PCB Mount Filters

FN405-0.5-02 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FN405-0.5-02 Estimated Pricing

Qty Low High
1+ $15.32 $15.32
10+ $11.99 $11.99
25+ $11.28 $11.28
50+ $10.61 $10.61
100+ $10.22 $10.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

FN405-0.5-02 Features

  • Single phase EMI filter rated 0.5A at 40°C.
  • Through-hole PCB mount design.
  • 24mH inductance with 15nF Cx capacitance.
  • 373µA maximum leakage current at 230VAC.
  • Operating temperature range -25°C to 100°C.

FN405-0.5-02 Applications

  • Used in electrical and electronic equipment.
  • Suitable for small to medium-sized machines.
  • Ideal for single-phase power supplies.
  • Applied in test and measurement equipment.

FN405-0.5-02 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the FN405-0.5-02?

250VAC maximum continuous operating voltage.

What is the operating temperature range?

-25°C to 100°C.

Is the FN405-0.5-02 RoHS compliant?

RoHS3 compliant (unverified).

What is the leakage current?

373 µA maximum at 230VAC/50Hz.

What approvals does the FN405-0.5-02 have?

CSA, ENEC, UR, UL 1283, IEC/EN 60939.

What is the inductance value?

24 mH.

What is the mounting type?

Through hole, PC pins.
