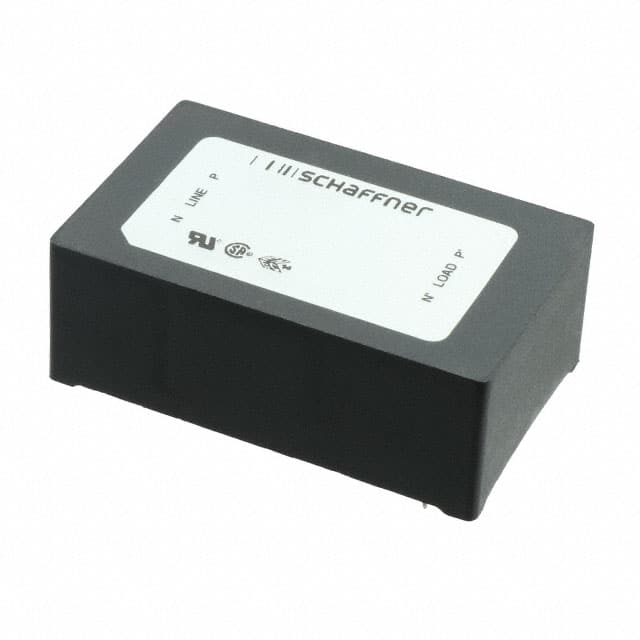

The Schaffner FN402B-6.5-02 is a single-phase EMI line filter designed for PCB mounting. It belongs to the FN402 series and is a B-type medical version, offering a high potential test voltage of 2500 VAC between line and ground. Rated for continuous operation at 250 VAC, it delivers a nominal current of 6.5 A at 40°C (7.5 A max at 25°C).
Electrical characteristics include a leakage current of only 2 µA at 230 VAC/50 Hz, inductance of 1 mH, X-capacitance of 100 nF, Y-capacitance of 1000 nF, and a discharge resistor of 1000 kΩ. The filter operates from DC to 400 Hz and has an MTBF exceeding 1,900,000 hours at 40°C/230 V.
The component is housed in a compact through-hole package with PC pin terminations, weighing 40 g. It is approved by CSA, ENEC, and UR, and meets UL 94 V-0 flammability. The operating temperature range is -25°C to 100°C. This filter is suitable for general purpose applications including medical equipment, power supplies, and test equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.96 | $16.96 |
| 10+ | $15.36 | $15.36 |
| 25+ | $15.02 | $15.02 |
| 50+ | $14.58 | $14.58 |
| 100+ | $10.63 | $10.63 |
| 1,000+ | $10.32 | $10.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
250 VAC
Through Hole
-25°C to 100°C
RoHS3 Compliant (unverified)
6.5 A at 40°C (nominal), 7.5 A max at 25°C
CSA, ENEC, UR
2 µA max at 230 VAC/50 Hz
