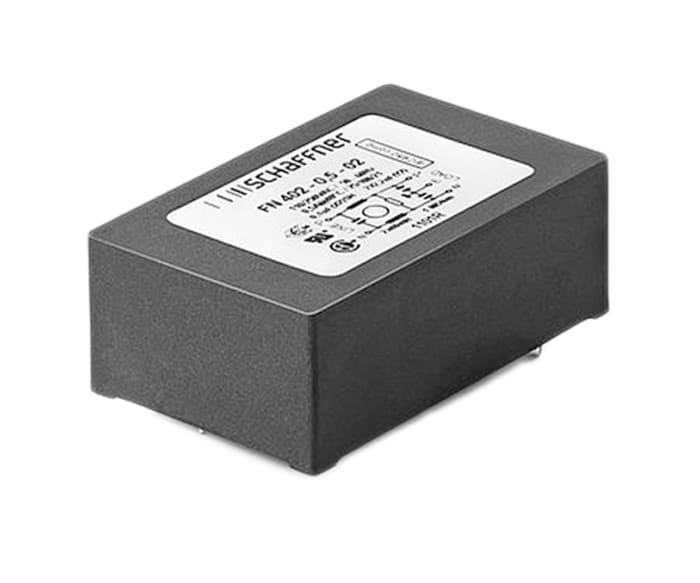

The Schaffner FN402-0.5-02 is a single-phase EMI filter designed for easy and fast PCB-mounting. This filter operates at 60Hz with a maximum current of 500mA and a maximum voltage of 250V AC.
Key electrical specifications include a capacitance of 100nF, an inductance of 40mH, and a leakage current of 0.373mA. It also has a resistance of 1mΩ.
Designed for through-hole mounting, this filter has a compact mechanical profile with dimensions of 16.5mm in height, 28mm in depth, and 45mm in length. The operating temperature range is from -25°C to 100°C.
This series is suitable for a wide range of applications, including electrical and electronic equipment, small to medium-sized machines, household equipment, single-phase power supplies, switch-mode power supplies, test and measurement equipment, and medical equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 500mA.
The maximum AC voltage is 250V.
The operating frequency is 60Hz.
The capacitance is 100nF.
The inductance is 40mH.
The operating temperature range is -25°C to 100°C.
It is a through-hole mount type.
