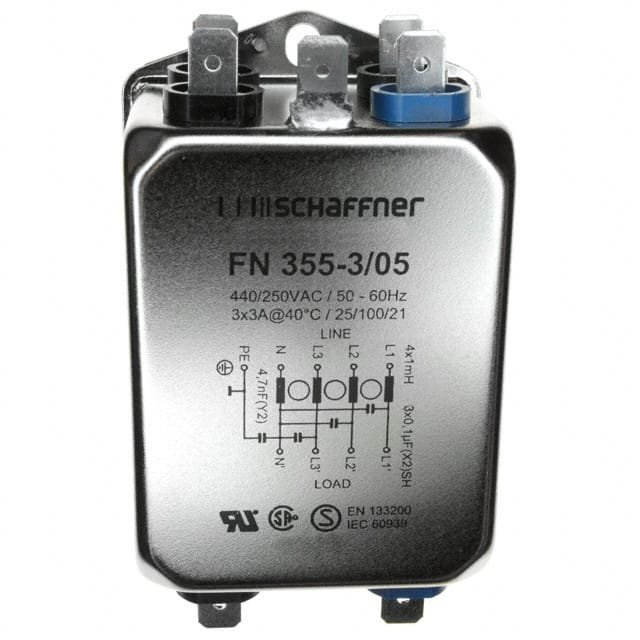

FN355-3-05 Schaffner FN355-3-05 is a three phase (Wye) power line filter rated for 3A at 250V. It features chassis mount with quick connect terminals and operates from DC to 400Hz.
Mfr Part #:

FN355-3-05

Available from 1 distributors
Mfr Name: Schaffner
Schaffner
Schaffner FN355-3-05 is a three phase (Wye) power line filter rated for 3A at 250V. It features chassis mount with quick connect terminals and operates from DC to 400Hz.
✓ Total Stock: 1 pcs
$ Price Range: $44.32 - $61.56

FN355-3-05 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

FN355-3-05 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Configuration
Current
Filter Type
Frequency
Lead Style
Mounting Type
Operating Temperature
Termination Style
Voltage
View Similar Products (0)

FN355-3-05 Description

Short technical summary and product information.

The Schaffner FN355-3-05 is a three phase (Wye) power line filter designed for general purpose applications. It is rated for a continuous current of 3A at 250V AC/DC and operates over a frequency range from DC to 400Hz. The filter employs a single stage configuration to attenuate conducted electromagnetic interference. It is chassis mounted and features quick connect terminals for easy installation. The operating temperature range is -25°C to 100°C. The filter is approved by CSA, SEMKO, and UR agencies. It is compliant with RoHS3, REACH, and has an MSL of 1 (unlimited).

FN355-3-05 Quick Information

Product Type: Power Line Filter Module
Series: FN355
Canonical Name: Schaffner FN355-3-05 Three Phase Power Line Filter, 3A, 250V, Chassis Mount
Subcategory: Three Phase (Wye) Single Stage Filter

FN355-3-05 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

FN355-3-05 Estimated Pricing

Qty Low High
1+ $61.56 $61.56
10+ $51.94 $51.94
20+ $47.89 $47.89
60+ $46.20 $46.20
100+ $44.32 $44.32

Estimated market price range - modelled values for guidance only, not live distributor offers.

FN355-3-05 Features

  • Three phase (Wye) filter configuration.
  • Rated for 3A at 250V.
  • Single stage EMI suppression design.
  • Chassis mount with quick connect terminals.
  • Operating temperature range -25°C to 100°C.

FN355-3-05 Applications

  • Used in general purpose power line filtering.
  • Suitable for industrial equipment with three phase power.
  • Ideal for DC to 400Hz power systems.
  • Applied in chassis-mounted power supply units.

FN355-3-05 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rated voltage of the FN355-3-05?

250V.

What is the operating temperature range?

-25°C to 100°C.

Is the FN355-3-05 RoHS compliant?

Yes, it is RoHS3 compliant.

What is the rated current of this filter?

3A.

What type of filter configuration does it have?

Single stage three phase (Wye).

What are the agency approvals for this part?

CSA, SEMKO, UR.

What is the mounting style?

Chassis mount with quick connect terminals.
