Mfr Part #:

FN332Z-6-05

Mfr Name: Schaffner

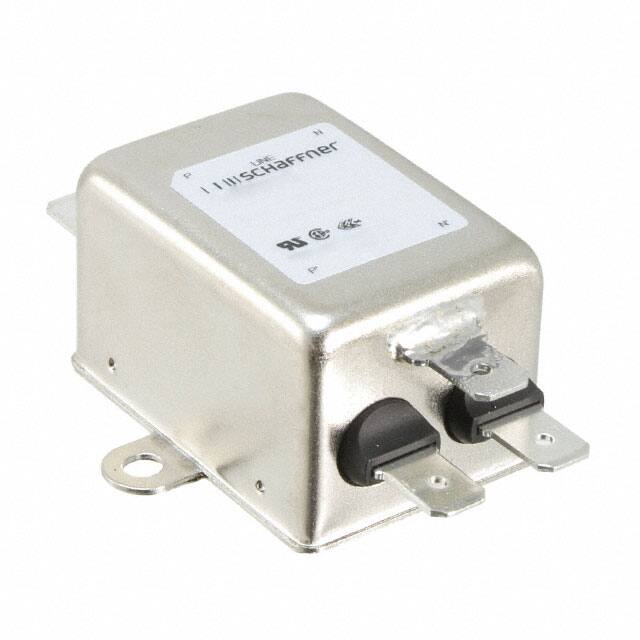

Schaffner FN332Z-6-05 is a single-phase EMC/RFI power line filter rated at 6A and 250VAC. It features a compact chassis-mount design with terminal post connections.

✓ Total Stock: 8 pcs

$ Price Range: $29.28 - $39.98

FN332Z-6-05 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	8 pcs On Request	8 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

FN332Z-6-05 Description

Short technical summary and product information.

The Schaffner FN332Z-6-05 is a single-phase EMC/RFI filter from the FN332 series, designed for easy chassis mounting. It is rated for 6A continuous current at 250VAC, with an operating frequency range from DC to 400Hz.

Electrical specifications include 800µH inductance, 15nF Cx capacitance, and 2.2nF Cy capacitance. Leakage current is 340µA at 230VAC/50Hz. The Z type integrates surge protection rated at 1200A surge current and 26J energy absorption. High potential test voltages are 2000VAC (P-PE), 760VAC (P-N), and 250VAC (P-N Z type).

Mechanically, the filter uses chassis mount with terminal post terminations. Dimensions are 65.6mm x 45mm x 24.8mm, weight 65g. Operating temperature range is -25°C to 100°C. Flammability rating is UL 94 V-0. MTBF is greater than 710,000 hours.

The filter carries CSA, ENEC, and UR approvals. It is suitable for general purpose applications including power supplies, office automation, datacom equipment, and industrial auxiliary supplies.

FN332Z-6-05 Quick Information

Product Type: Power Line Filter Module

Series: FN332

Canonical Name: Schaffner FN332Z-6-05 Single-Phase Power Line Filter with Surge Protection

Subcategory: Single-Phase Power Line Filter

FN332Z-6-05 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

FN332Z-6-05 Estimated Pricing

Qty	Low	High
1+	$39.98	$39.98
10+	$32.63	$32.63
25+	$31.61	$31.61
120+	$30.19	$30.19
300+	$29.28	$29.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

FN332Z-6-05 Features

Single-phase EMC/RFI filter for 6A operation.
Rated voltage 250VAC with 400Hz capability.
Integrated surge protection protects sensitive equipment.
Compact chassis mount with terminal post terminals.
High MTBF greater than 710,000 hours.

FN332Z-6-05 Applications

Used in power supply EMI filtering circuits.
Ideal for office automation equipment.
Suitable for industrial equipment auxiliary supplies.
Suppresses noise in consumer electronics.

FN332Z-6-05 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the rated voltage of the FN332Z-6-05?

250VAC.

What is the operating temperature range?

-25°C to 100°C.

Is the FN332Z-6-05 RoHS compliant?

The part is listed as RoHS3 Compliant but this is unverified.

What is the leakage current of this filter?

340 µA at 230 VAC, 50 Hz.

Does this filter include surge protection?

Yes, the Z type includes surge protection rated at 1200 A and 26 J.

What mounting style does the FN332Z-6-05 use?

Chassis mount with terminal post terminations.

What are the approvals for this filter?

CSA, ENEC, UR.

Category	Power Line Filter Modules
Manufacturer Name	Schaffner
Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	6 A
Filter Type	Single Phase
Frequency	DC ~ 400Hz
Inductance	800 µH
Lead Style	Terminal Post
Mounting Type	Chassis Mount
Operating Temperature	-25°C ~ 100°C
SVHC Present	Not Present
Storage Temperature	-25.0°C ~ 100.0°C
Termination Style	Terminal Post
Voltage	250 V
Weight	65 g
