| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Voltage | |
| Weight |

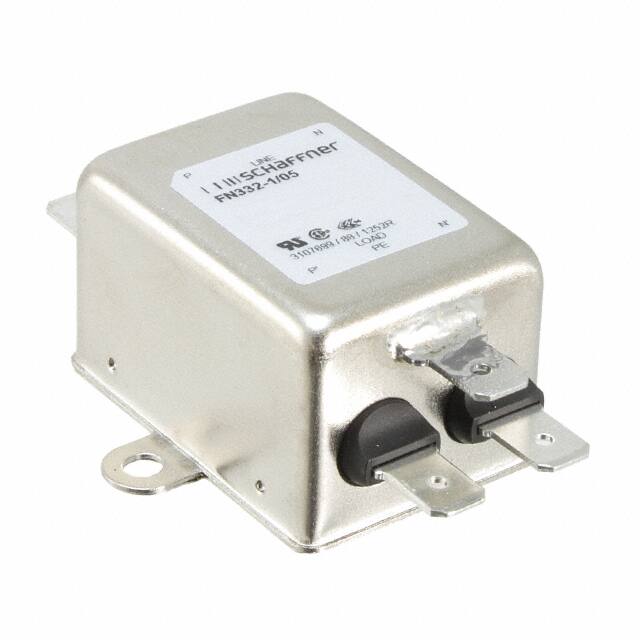

The Schaffner FN332-1-05 is a single phase, single stage EMC/RFI power line filter designed for general purpose applications. It is rated for a continuous operating voltage of 250VAC at 50/60Hz and a nominal voltage of 230VAC. The filter provides a rated current of 1A at 40°C (1.2A maximum at 25°C) and operates over a frequency range from DC to 400Hz. Key electrical characteristics include an inductance of 10mH, a capacitance of 15nF (Cx) and 2.2nF (Cy), and a maximum leakage current of 340µA at 230VAC/50Hz. The filter is housed in a compact chassis mount package with quick connect terminals, weighing 65 grams and measuring 65.6mm x 45mm x 24.8mm. It is designed for easy installation and offers high saturation resistance chokes for excellent thermal behavior. The operating temperature range is -25°C to 100°C. The FN332-1-05 is certified to CSA, ENEC, and UR standards and is flammability rated UL 94 V-0. Typical applications include electrical and electronic equipment, power supplies, office automation, and industrial equipment auxiliary supply.
| Qty | Low | High |
|---|---|---|
| 1+ | $26.35 | $26.35 |
| 10+ | $22.90 | $22.90 |
| 25+ | $20.45 | $20.45 |
| 120+ | $19.24 | $19.24 |
| 300+ | $17.50 | $17.50 |
| 540+ | $17.36 | $17.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous operating voltage is 250VAC at 50/60Hz, with a nominal voltage of 230VAC.
Chassis mount with quick connect terminals.
-25°C to 100°C.
Yes, it is RoHS3 compliant, though this status is unverified and has low confidence.
1A at 40°C, with a maximum of 1.2A at 25°C.
10mH.
CSA, ENEC, and UR.
