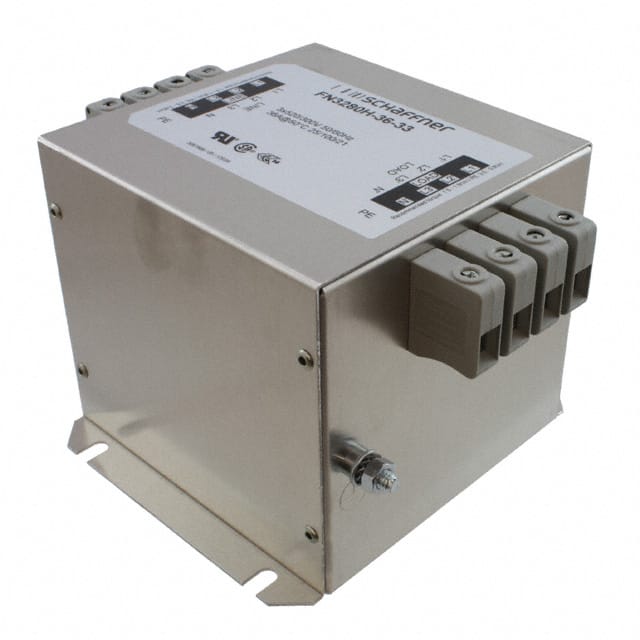

The Schaffner FN3280H-36-33 is a high-end three-phase (Wye) power line filter designed for industrial machinery and equipment. It is a two-stage filter with a nominal voltage of 480 VAC (maximum continuous 520 VAC) and a rated current of 36 A at 50°C. The filter operates over a frequency range of DC to 60 Hz and provides overload capability of 4x rated current at switch-on and 1.5x rated current for 1 minute once per hour.
This filter offers high potential test voltages of 2750 VDC (P/N to E), 2250 VDC (P to P), and 1300 VDC (P to N) for 2 seconds. It is designed for chassis mounting with terminal block terminations, making it suitable for industrial installations. The operating temperature range is -25°C to +100°C, and the protection category is IP20. The flammability rating is UL 94 V-0, and the filter is designed to meet UL 1283, CSA 22.2 No. 8, and IEC/EN 60939 standards.
The FN3280H-36-33 provides exceptional attenuation with low leakage current, suitable for machines in mixed (Class A) or domestic (Class B) environments. It also increases immunity when operated directly on the mains input. The filter has a compact, space-saving design optimized for industrial machinery, with a mean time between failures (MTBF) exceeding 360,000 hours at 50°C and 480 V.
| Qty | Low | High |
|---|---|---|
| 1+ | $321.49 | $321.49 |
| 12+ | $303.46 | $303.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 36 A and the nominal voltage is 480 VAC (maximum continuous 520 VAC).
The operating temperature range is -25°C to +100°C.
The part is marked as RoHS3 compliant in the database, but this is unverified and should be confirmed with the latest datasheet.
It is chassis mount with terminal block termination.
It can handle 4x rated current at switch-on and 1.5x rated current for 1 minute once per hour.
It has CSA, ENEC, and UR approvals.
