| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Capacitance (CX) | |
| Capacitance (Cy) | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Features | |
| Filter Type | |
| Frequency Range | |
| Fuse Holder, Drawer | |
| Fuse Power Acceptance | |
| High Potential Test Voltage (@ P->N) | |
| High Potential Test Voltage (@ P->PE) | |
| Inductance (L1) | |
| Inductance (L2) | |
| Industrial Grade | |
| Ingress Protection | |
| Inrush Current | |
| Lead Style | |
| Leakage Current | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Frequency | |
| Operating Voltage | |
| Panel Cutout Dimensions | |
| Rated Current (40°C) | |
| Rated Current (@ @ 25 °C) | |
| Storage Temperature | |
| Switch Electrical Rating (@ Europe) | |
| Switch Electrical Rating (@ UL/CSA) | |
| Switch Features | |
| Tape & Reel | |
| Temperature Range | |
| Termination | |
| Termination Style | |
| Weight |

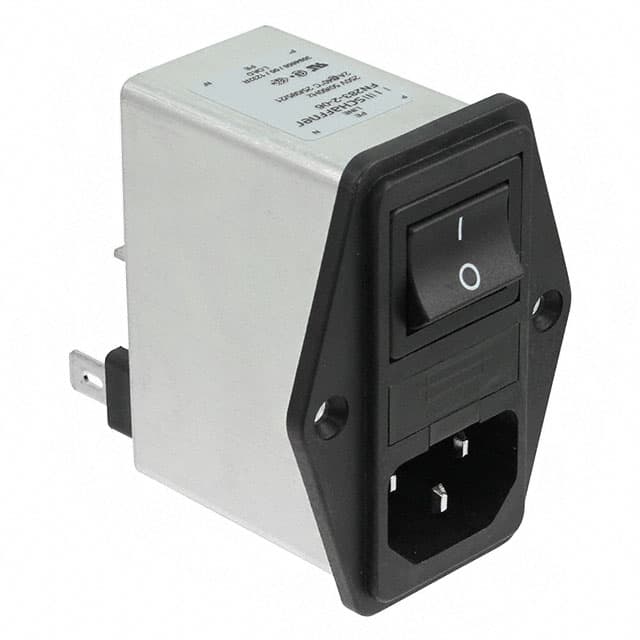

The Schaffner FN283-2-06 is a compact filtered power entry module designed for general purpose applications. It combines an IEC320-C14 male blade receptacle, a 2-pole rocker switch, and a fuse holder for two 5x20mm fuses in a single panel-mount package with quick connect terminals (0.250" / 6.3mm). The integrated EMI filter provides high conducted attenuation, with inductances of 2 mH (L1) and 220 mH (L2), and capacitances of 2.2 nF (Cx) and 1000 nF (Cy). Leakage current is 373 µA at 230 VAC/50 Hz. The module is rated for continuous operation at 250 VAC, 50/60 Hz, with a current rating of 2 A at 40°C (2.4 A at 25°C). It can withstand inrush currents up to 82 A. The rocker switch has electrical ratings of 10 A (4 A) at 250 VAC for Europe and 10 A at 125/250 VAC for UL/CSA. The module operates over a temperature range of -25°C to +85°C and has IP40 protection. It is approved by CQC, CSA, ENEC, and UL, and the housing meets UL94 V-2 flammability. Panel cutout is rectangular 29.00mm x 60.00mm, allowing front or rear side mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.45 | $30.45 |
| 10+ | $27.55 | $27.55 |
| 25+ | $25.84 | $25.84 |
| 40+ | $23.84 | $23.84 |
| 120+ | $23.04 | $23.04 |
| 280+ | $21.80 | $21.80 |
| 520+ | $21.13 | $21.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 2 A at 40°C and 2.4 A at 25°C.
The maximum continuous operating voltage is 250 VAC at 50/60 Hz.
Panel mount with flange, allowing front or rear side mounting.
3 positions (line, neutral, earth).
Yes, it accommodates two 5x20mm fuses (not included) with a power acceptance of 1.6 W per pole at 23°C.
Filtered (EMI, RFI) for commercial applications.
-25°C to +85°C.
