| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29 pcs
|
29 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Filter Type | |
| Fuse Holder, Drawer | |
| High Potential Test Voltage (Minimum @ P -> N) | |
| High Potential Test Voltage (Minimum @ P -> PE) | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Maximum Continuous Operating Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Frequency | |
| Panel Cutout Dimensions | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Range (Operation and Storage) | |
| Termination | |
| Termination Style |

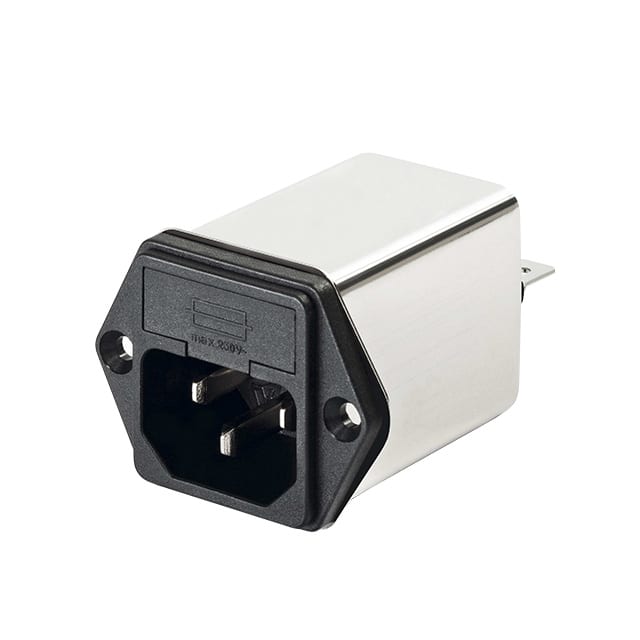

The Schaffner FN261-4-06 is part of the FN9260/FN261 series of power entry modules that combine an IEC inlet, EMI filter, and fuse holder in a compact package. It is rated for 4A continuous current at 250VAC, 50/60Hz, with an operating frequency range from DC to 400Hz.
Electrically, the module provides high potential test voltage of 2000VAC from line to ground and 760VAC line to neutral. It offers IP40 protection per IEC 60529 and operates over -25°C to +85°C. The inlet plastic has a flammability rating of UL94 V-0 (per datasheet), while the attribute lists UL94 V-2 for the module. The connector is an IEC 320-C14 receptacle with male blades, mounted via panel mount with flange, and terminated with quick connect 0.250" (6.3mm) tabs.
The module accommodates up to two 5x20mm fuses (not included) in an integrated fuse holder. It is designed for general purpose commercial EMI filtering and is approved by CQC, CSA, ENEC, and UL. Compliance with RoHS3, REACH, and MSL 1 is indicated but unverified.
Note: The datasheet primarily describes the FN9260 series; the FN261-4-06 is a variant with similar specifications. Always verify exact specifications with the manufacturer.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.07 | $18.07 |
| 10+ | $15.36 | $15.36 |
| 25+ | $14.40 | $14.40 |
| 60+ | $13.54 | $13.54 |
| 120+ | $12.82 | $12.82 |
| 300+ | $12.52 | $12.52 |
| 540+ | $12.13 | $12.13 |
| 1,020+ | $11.59 | $11.59 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4A at 40°C.
250 VAC.
Panel mount with flange.
No, fuse not included but accommodates up to two 5x20mm fuses.
IEC 320-C14 receptacle with male blades.
-25°C to +85°C.
CQC, CSA, ENEC, UL.
