| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
11 pcs
|
11 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Termination Style | |
| Voltage |

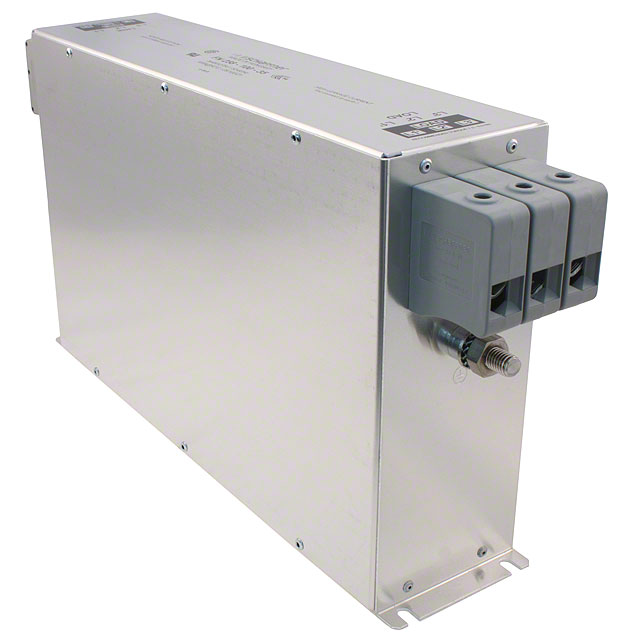

The Schaffner FN258L-130-35 is a high-performance two-stage three phase (delta) power line filter designed for inverters and power drive systems. It offers a rated current of 130A and a maximum continuous operating voltage of 277VAC, with an operating frequency range from DC to 60Hz.
The filter is built with a compact chassis-mount package and terminal block terminations for easy integration. It meets UL 1283, CSA 22.2 No. 8, and IEC/EN 60939 standards and carries CSA, ENEC, and UR approvals. The design includes a 5x rated current overload capability at switch-on and a 1.5x rated current overload for 1 minute once per hour.
Housed in a slim book-style shape for space-saving installation next to inverters and motor drives, the FN258L-130-35 provides excellent attenuation performance across a wide frequency range. It operates reliably in temperatures from -25°C to 100°C and achieves an MTBF of 130,000 hours at 50°C and 400V per Mil-HB-217F.
| Qty | Low | High |
|---|---|---|
| 1+ | $684.58 | $684.58 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 130A.
The rated voltage is 277VAC.
It operates from -25°C to 100°C.
RoHS3 compliant status is claimed but unverified per data quality flags.
It is designed for chassis mount installation.
It can handle 5x rated current at switch-on and 1.5x rated current for 1 minute once per hour.
