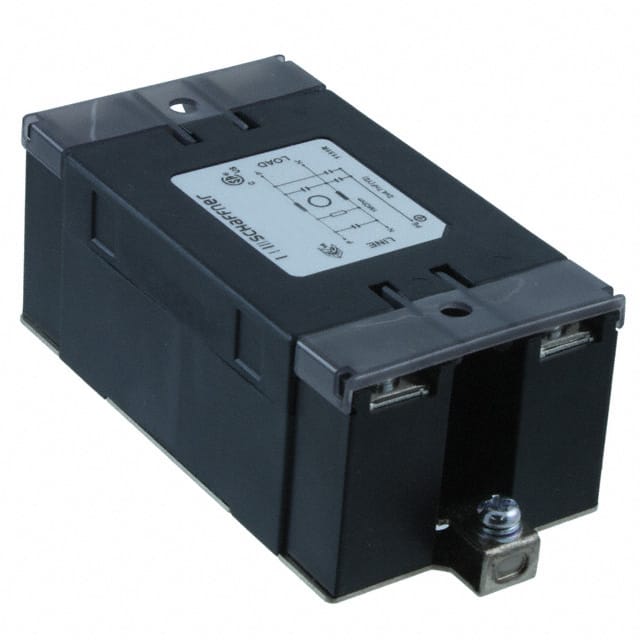

FN2450G-10-61

The Schaffner FN2450G-10-61 is a single phase, single stage EMI filter designed for general purpose applications. It is rated for a continuous operating voltage of 250 VAC and a nominal voltage of 230 VAC, with a rated current of 10 A at 55°C (11.4 A at 40°C). The filter operates from DC to 400 Hz and features very low leakage current: 0.66 mA at 250 VAC/50 Hz and 0.38 mA at 120 VAC/60 Hz. Key electrical parameters include 4.9 mH inductance, 0.47 µF capacitance, and 4.7 nF Cy capacitance. The filter is housed in a lightweight plastic enclosure with a metal ground plate, weighing only 210 g. It mounts via chassis mount with terminal block terminations, and includes hinged safety covers. The design meets UL 1283, CSA 22.2 No. 8, and IEC/EN 60939 standards, with flammability rating UL 94 V-0. It has a high potential test voltage of 2500 VAC line-to-ground and 1100 VDC line-to-line, and an MTBF greater than 180,000 hours at 55°C/230 V. The FN2450G-10-61 is RoHS compliant, REACH unaffected, and carries approvals from CSA, ENEC, and UR. It is suitable for use in test and measurement, medical devices, and general electrical equipment where low leakage current and environmental safety are priorities.
