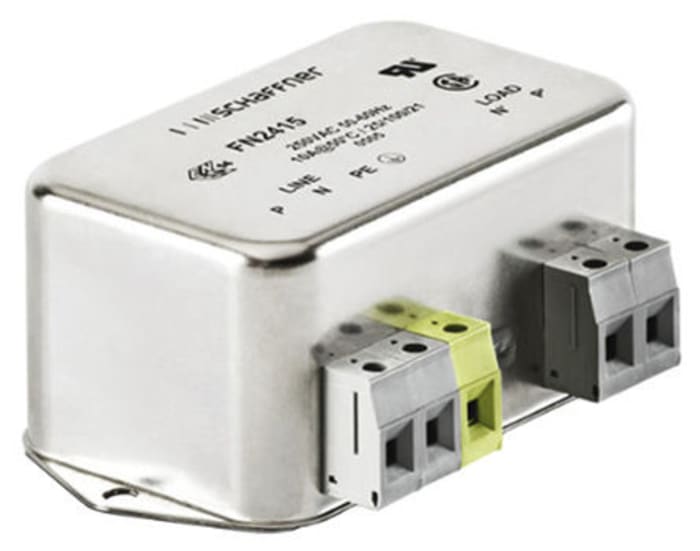

The Schaffner FN2415-16-29 is a compact two-stage EMC/EMI filter designed for the control line of complex industrial equipment and machinery. It ensures interference-free operation of control units and PLCs, improving system immunity and reliability.
Key electrical specifications include a maximum continuous operating voltage of 250 VAC, rated current of 16 A at 50 °C, and an operating frequency range from DC to 60 Hz. The filter offers overload capability of 4x rated current at switch-on and 1.5x rated current for 1 minute, once per hour. High potential test voltage is 2250 VDC from line to earth and 1100 VDC from line to line for 2 seconds.
The filter is housed in a chassis-mount package with touch-safe terminal block connections, providing solid and time-saving installation. It has an IP20 protection category and operates over a temperature range of -25°C to +100°C. The design complies with UL 1283, CSA 22.2 No. 8 1986, and IEC/EN 60939 standards, with flammability rating UL 94 V-2 or better. MTBF exceeds 1,300,000 hours at 50°C/230V.
| Qty | Low | High |
|---|---|---|
| 1+ | $97.10 | $97.10 |
| 10+ | $67.42 | $67.42 |
| 25+ | $65.78 | $65.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 16 A at 50 °C.
The maximum continuous operating voltage is 250 VAC.
The operating and storage temperature range is -25°C to +100°C.
It uses chassis mount with terminal block termination.
It complies with UL 1283, CSA 22.2 No. 8 1986, and IEC/EN 60939.
The protection category is IP20.
