| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
54 pcs
|
54 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Filter Type | |
| Frequency | |
| Industrial Grade | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Termination Style | |
| Voltage | |
| Weight |

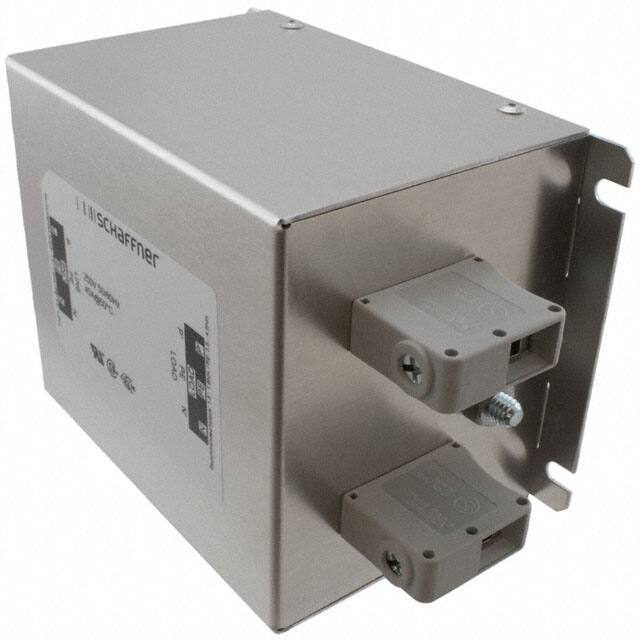

The Schaffner FN2410-45-33 is a single phase, single stage EMC/RFI power line filter designed for industrial electronics requiring high conducted attenuation performance. It is rated for a continuous operating voltage of 250 VAC and a nominal voltage of 230 VAC, with an operating frequency range from DC to 400 Hz.
This filter delivers a rated current of 45 A at 50°C (49.3 A at 40°C) and can handle overloads of 4x rated current at switch-on and 1.5x rated current for one minute, once per hour. Typical power loss is 7.4 W at 25°C/50 Hz, and leakage current is 2.60 mA at 250 VAC/50 Hz or 1.49 mA at 120 VAC/60 Hz.
Designed for chassis mounting with industrial grade terminal blocks, the FN2410-45-33 operates over a temperature range of -25°C to 100°C and carries an IP20 protection rating. It is designed to UL 1283, CSA 22.2 No. 8, and IEC/EN 60939 standards, with approvals from CSA, ENEC, and UR. The flammability rating is UL 94 V-0, and the MTBF exceeds 1,200,000 hours at 50°C/230 V.
| Qty | Low | High |
|---|---|---|
| 1+ | $138.74 | $138.74 |
| 10+ | $123.18 | $123.18 |
| 50+ | $119.48 | $119.48 |
| 100+ | $115.78 | $115.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated current is 45 A at 50°C and 49.3 A at 40°C.
The maximum continuous operating voltage is 250 VAC.
The operating temperature range is -25°C to 100°C.
RoHS compliance is listed as RoHS3 Compliant, but this is unverified and low confidence.
It is approved by CSA, ENEC, and UR, and designed to UL 1283, CSA 22.2 No. 8, and IEC/EN 60939.
Leakage current is 2.60 mA typical at 250 VAC/50 Hz and 1.49 mA typical at 120 VAC/60 Hz.
The mounting type is chassis mount with terminal block termination.
