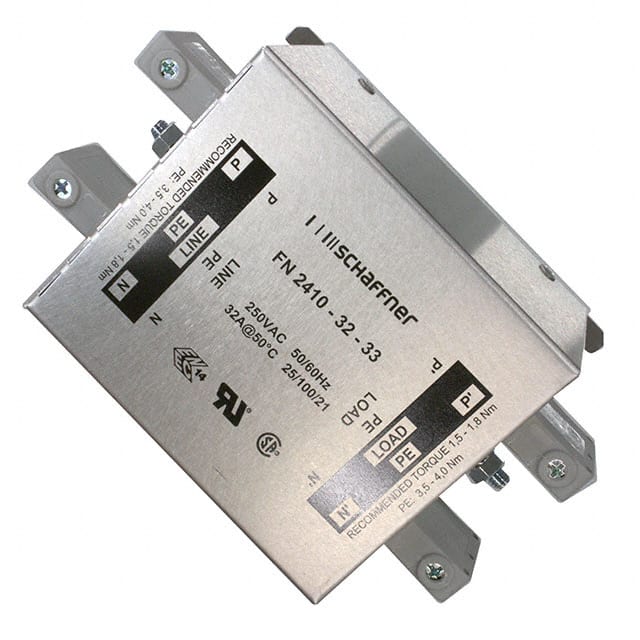

The Schaffner FN2410-32-33 is a single phase EMC/RFI power line filter from the FN2410 series, designed for industrial electronics with high interference levels. It features a single stage filter topology with a rated current of 32 A at 50°C and a maximum continuous operating voltage of 250 VAC. The filter operates from DC to 400 Hz and has a typical leakage current of 2.60 mA at 250 VAC/50 Hz.
This chassis mount filter uses industrial grade terminal blocks for electrical connections and is rated IP20 for protection. It can withstand high potential test voltages of 2000 VAC from phase to earth and 1100 VDC from phase to neutral. The operating temperature range is -25°C to 100°C, and the flammability rating is UL 94 V-0.
Typical applications include industrial electronics, machinery, and equipment requiring conducted EMI suppression. The filter provides excellent attenuation performance based on chokes with high saturation resistance and good thermal behavior.
| Qty | Low | High |
|---|---|---|
| 1+ | $126.75 | $126.75 |
| 10+ | $113.69 | $113.69 |
| 50+ | $110.28 | $110.28 |
| 100+ | $106.86 | $106.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
250 VAC.
-25°C to 100°C.
RoHS3 Compliant (unverified).
32 A.
2.60 mA typical at 250 VAC/50 Hz.
Chassis mount.
IP20.
