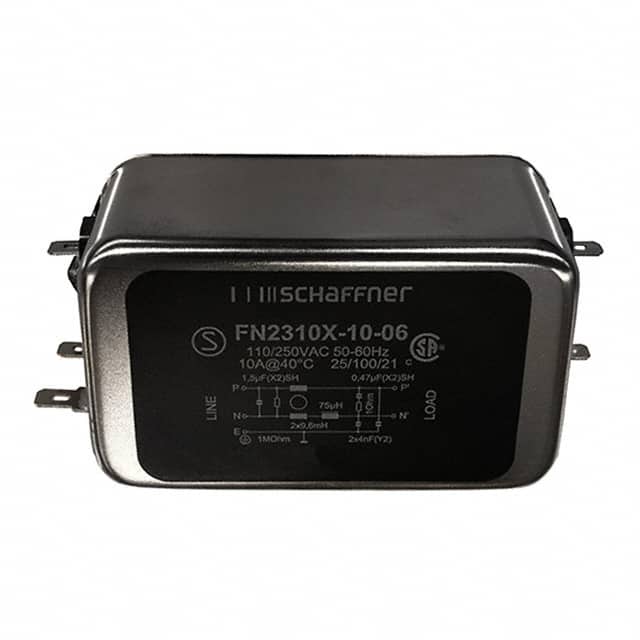

The Schaffner FN2310X-10-06 is a single phase, single stage EMI filter designed for general purpose applications. It is rated for continuous operation at 250VAC with a maximum current of 10A at 40°C. The filter operates from DC to 400Hz and provides high differential and common-mode attenuation.
Key electrical specifications include an inductance of 9.6 mH, capacitance values of 1.5 µF (Cx) and 4 nF (Cy), and a discharge resistance of 1 MΩ. Typical leakage current is 0.69 mA at 230VAC/50Hz. The filter is designed to meet UL 1283, CSA 22.2 No. 8 1986, and IEC/EN 60939 standards.
The FN2310X-10-06 features a chassis mount package with quick connect terminals. Its dimensions are 113.5 mm x 57.5 mm x 45.5 mm and it weighs 470 g. The operating temperature range is -25°C to 100°C. The filter has a high potential test voltage of 2000 VAC (P-PE) and 1100 VDC (P-N).
| Qty | Low | High |
|---|---|---|
| 20+ | $21.62 | $21.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
250VAC.
-25°C to 100°C.
RoHS3 compliant status is unverified.
9.6 mH.
0.69 mA typical at 230VAC/50Hz.
113.5 mm x 57.5 mm x 45.5 mm.
470 g.
