| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35 pcs
|
35 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Configuration | |
| Current | |
| Efficiency | |
| Filter Type | |
| Lead Style | |
| Medical Grade | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| Storage Temperature | |
| Termination Style | |
| Voltage | |
| Weight |

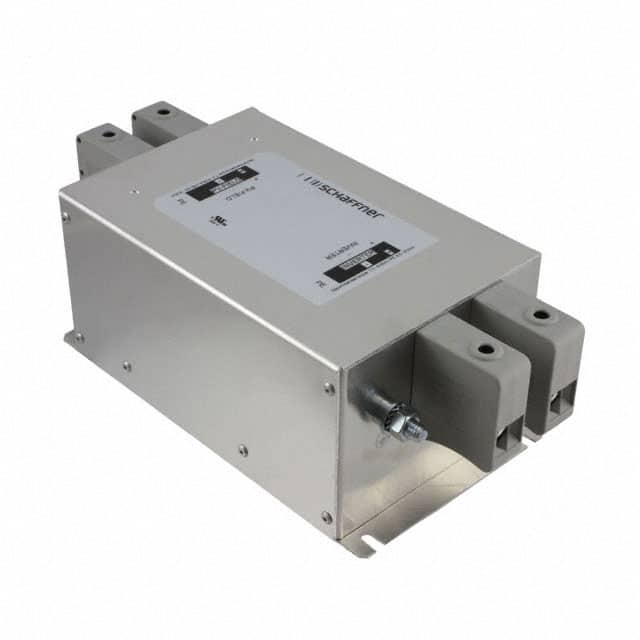

The Schaffner FN2200B-100-35 is a DC EMC/RFI filter designed for photovoltaic inverter applications. It is rated for a continuous current of 100A at 55°C (115A at 40°C) and a maximum operating voltage of 1200VDC. The filter provides overload capability of 4x rated current at switch-on and 1.5x rated current for 1 minute once per hour. With a typical power loss of 22W and efficiency greater than 99.9% at 25°C/DC, it supports high overall system efficiency.
This filter helps reduce conducted emissions towards the solar panel and minimizes the probability of EMI radiation off the panel. It also protects the solar panel from HF leakage currents, contributing to reliable system operation and compliance with international EMC standards such as EN 61000-6-3 and -6-4. The design meets UL 1283, CSA 22.2 No. 8 1986, and IEC/EN 60939 standards.
The FN2200B-100-35 features a chassis mount with terminal block terminations and is protected to IP20. It weighs 2.7 kg and operates over a temperature range of -40°C to +100°C. The filter is approved to cURus (600 VDC) and ENEC14 (600 VDC) and has a minimum MTBF of 223,000 hours at 55°C/1200V per Mil-HB-217F.
| Qty | Low | High |
|---|---|---|
| 1+ | $391.08 | $391.08 |
| 10+ | $381.53 | $381.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum continuous operating voltage is 1200 VDC.
The rated current is 100 A at 55°C and 115 A at 40°C.
The operating temperature range is -40°C to +100°C.
The efficiency is greater than 99.9% at 25°C/DC.
The filter is approved to cURus (600 VDC) and ENEC14 (600 VDC).
The filter is chassis mount with terminal block terminations.
The filter is listed as RoHS3 compliant, but this is unverified and should be treated as low confidence.
